●With adjustable drilling depth (max. 35 mm)
| Spindle rotation speed | 1100/ 1600 / 2500 / 4200 / 6400 / 9600rpm (adjustable pulley & belt configuration)(at 60 Hz) |
|---|---|
| Drilling capacity | For iron and non-ferrous 6.5mmφ |
| Spindle axial play | 0.02 mm（not including chuck） |
| Chucking dia. | 0.5 to 6.5 mmφ |
| Rated voltage / frequency | 100V AC 50 / 60 Hz |
| Power consumption | 60 W |
| Rated time | Continuous (in no-load condition) |

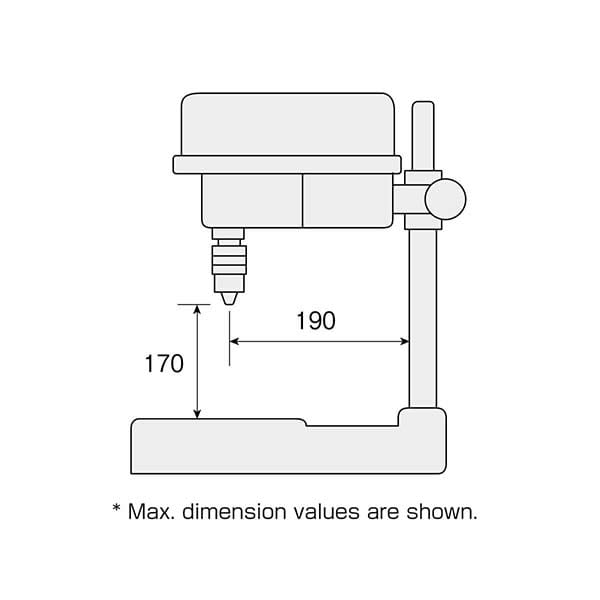

| External dimensions | 210（W） × 450（H） × 340（D）mm |
| Weight | 18.6 kg |
■Power cable: 1.6 m
