CL-901
CLEAN BOOTH

  • not for export

■A fan filter unit and booth are included with the CL-901.

Fan Filter Unit (FFU)
Rated voltage / frequency 100V AC 50 / 60 Hz
Power consumption 64 / 60 W(50 / 60 Hz)
Filter type HEPA(main filter), non-woven fabric(pre-filter)
Trapping efficiency 0.3 µm 99.97 % or higher
Airflow rate 9.0 / 10.5 m3 / min(50 / 60 Hz)
Airflow velocity 0.4 / 0.5 m / s(50 / 60 Hz)
(with HEPA / Pre-filter installed)
Weight 12 kg
(with HEPA / Pre-filter installed)

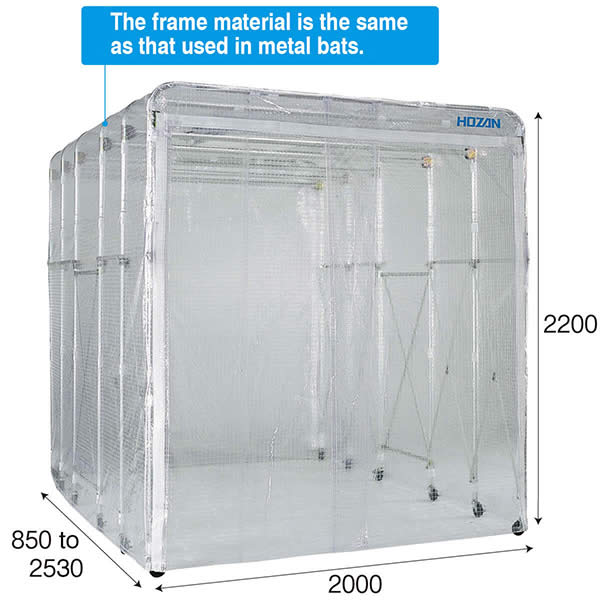

Booth
External dimensions 2000(W) × 2200(H) × 850 to 2530(D)mm
Booth capacity 3.74 to 11 m3
Air exchange rate 144 to 49 times / hr (50 Hz)
168 to 57 times / hr (60 Hz)
(min. size to expanded size)
Cleanliness class class 6 to class 7 (ISO14644-1 / JIS B 9920-1)、1000~10000(federal standard 209E)
Sheet material Fiber reinforced PVC sheet
(contains antistatic agent) thickness 0.3 mm
Frame material Aluminum
Weight 39.5 kg

Manual

Demonstration

■Replacement parts

CL-901-1
FAN FILTER UNIT

■Fan set (includes HEPA filter)

Manual

CL-901-2
HEPA-FILTER

■HEPA filter only

CL-901-9
PRE-FILTER

■Pre-filter only

■4 filters provided

CL-901-12
TENT FOR CLEAN BOOTH

■Quantity:1

■Optional items

CL-901-4
PARTITION CURTAIN

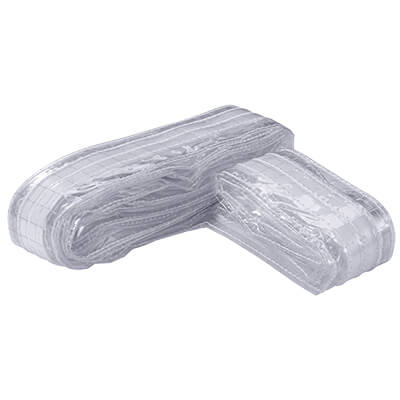

CL-901-5
CONNECTION TAPE

■Two CL-901 units can be easily linked using a Velcro fastener.

■Demonstration
