HOZAN Logo

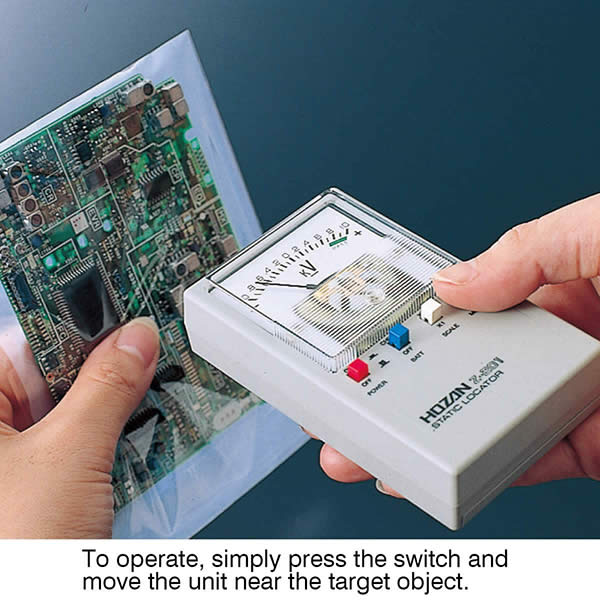

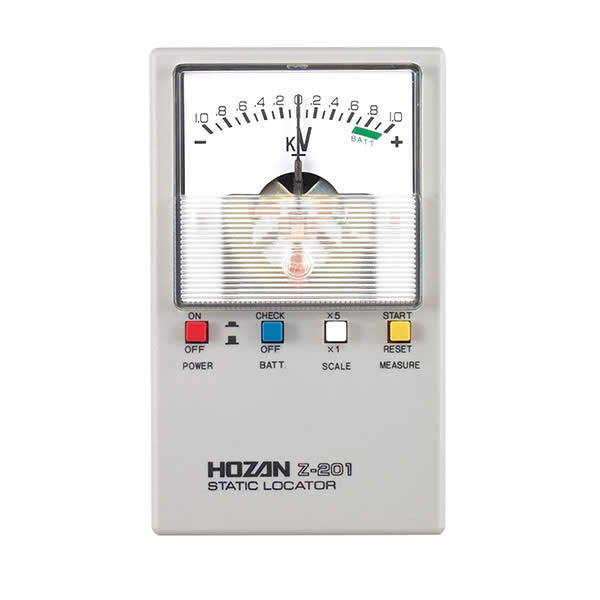

Z-201
STATIC LOCATOR

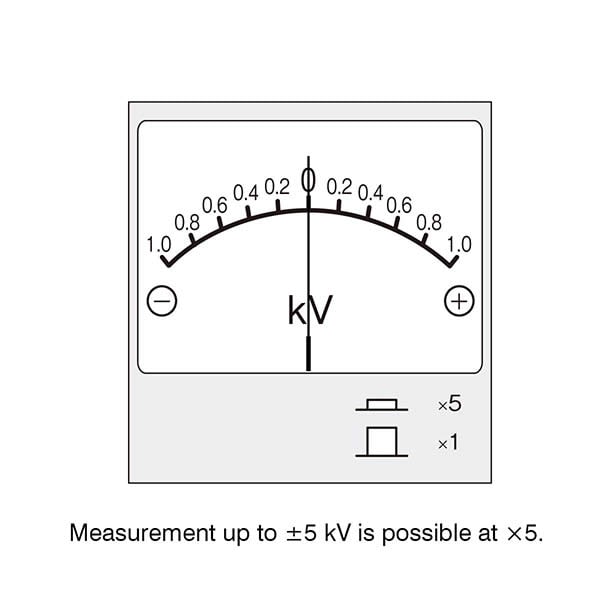

Measurement range (× 1 range)±1 kV / (× 5 range)±5 kV
Measurement distance 25 mm (from sensor to measured object)
Accuracy ± 10 % of reading
Power supply 9 V Laminated (6F22) battery × 1
Battery life 40 hours (continuous use)
External dimensions 61(W) × 31(H) × 97(D)mm
Weight 100 g (including battery)

Z-201-TA
STATIC LOCATOR
(with calibration certificate)

* Because the certificate will bear the purchaser's name (company name, etc.) , your name is required when ordering.
