L-46

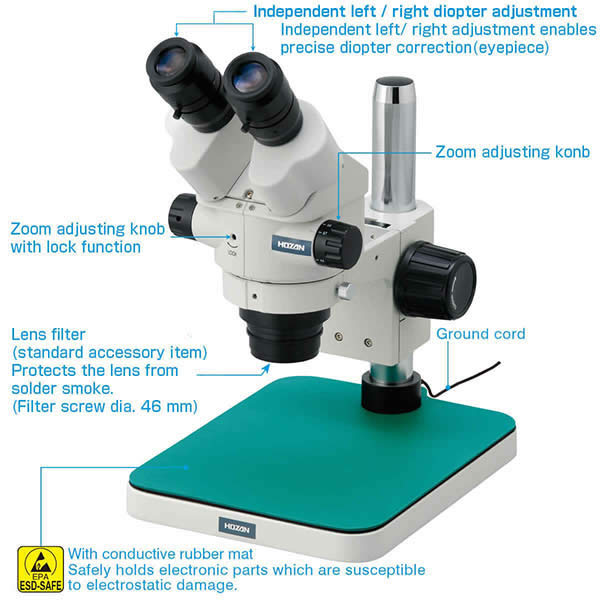

STEREO MICROSCOPE(ZOOM TYPE)

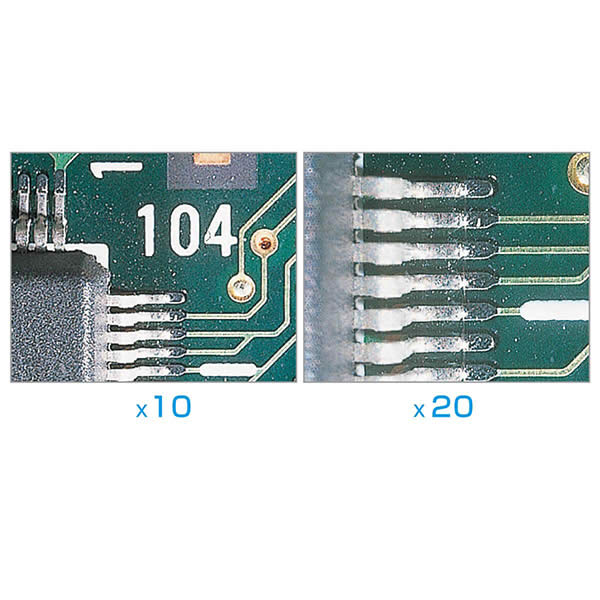

  • 10 / 20倍
  • RoHS6物質対応
Total magnification 7 to 45 X
Objective lens 0.7 to 4.5 X(zoom ratio 6.4)
Eyepiece WF10X(L-546-10)
Sight adjustment Independent left / right adjustment type, ± 5 Dptr
Working distance 84 mm
(equipped with lens filter / ring)
Focus adjustmen Head scope up / down type
(adjustable range:50 mm)
Stereo head spec. Binocular 45° Tilted Head scope
Eye width adjustment range 54 to 75 mm、left / right interlocking type

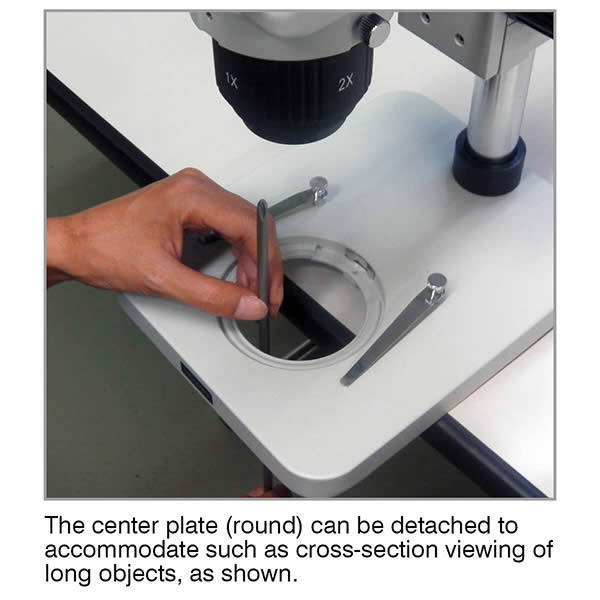

Table dimensions 200(W)× 255(D)mm
Support height 282 mm
Distance from lens center to support 133 mm
Weight 4.2 kg

■Accessories: Ground cord, 2 clips (clamps)

Manual


STEREO MICROSCOPE 全10点

  • 新製品
  • PC
  • USB
  • 画像・動画保存
  • 計測
  • NEW:L-KIT619 to 626

» System diagram

L-46
Camera System
Part. no カメラを使用した場合 実体顕微鏡として使用した場合 Combination
Magnification X Field
of
view
mm
Working
distance
mm
Magnification X Field
of
view
mmφ
Working
distance
mm
Camera Lens Base Light
L-835 L-846*1 L-461 L-546-10 L-546-20 L-57-0.5 L-462 L-424 L-525 L-711*2 L-703 L-717 L-715

Standard type
L-46   28.5 to 4.4 84
L-KIT619 28.5 to 4.4 84
L-KIT620 69 69
L-KIT621 84 84
L-KIT622
L-KIT623 39 39
Wide type
L-KIT616   28.5 to 2.2 160 / 84
L-KIT617 150 / 69
L-KIT618 160 / 84           *3
L-KIT624 28.5 to 4.4 84 14.3 to 2.2 84
L-KIT625 69 69
L-KIT626 84 84         *3

*1Accessory L-846-3 Adapter

*2Accessory L-711-1 Filter

*3Accessory L-703-1 Clamp Set


System diagram

L-46 Magnification table
  Standard
Objective lens 0.7 to 4.5X
Conversion lens - L-57-0.5 L-57-1.5 L-57-2.0
Eyepiece Magnification
X
Field of view
mmφ
Working
distance
mm
Magnification
X
Field of view
mmφ
Working
distance
mm
Magnification
X
Field of view
mmφ
Working
distance
mm
Magnification
X
Field of view
mmφ
Working
distance
mm
L-546-10
(WF10X)
7 to 45 28.5 to 4.4 84 3.5 to 22.5 57.1 to 8.9 160 10.5 to 67.5 19.0 to 2.9 43 14 to 90 14.3 to 2.2 26
L-546-20
(WF15X)
14 to 90 14.3 to 2.2 84 7 to 45 28.5 to 4.4 21 to 135 9.5 to 1.5 28 to 180 7.1 to 1.1

* The "working distance" is the distance from the end of the filter to the subject.
