C-448
HEAD CUP PRESS

The C-448 is new tool for head-cup press, easy & safety maintenance.
The upper piece consist of the handle, shaft and upper step-ring.
The lower piece step-ring is detachable, so it makes easy and quick work surely.
If you turn the handle counter clockwise too much, C-448's handle stays at the top, it will not come off. It has integrated bearing type.
You can work with long head-tube over 300mm using C-449 extension.

O.A.L. 380mm~420mm
Weight 1.9kg

Caution:Don't work with such head-set as a pre-installed bearing type.

MANUAL

■Replacement parts

C-448-1
BEARING

Replacement parts for C-448 and C-438.

MANUAL

■Optional parts

C-448-4
ADAPTER SET

Using C-448-4 enable present C-448 to comply with headset such as ChrisKing, Zerostack, Onepointfive and Headshok.
Still features easy operatability of C-448 because adapters are instantly stops by gasket inside.

Applicable size 1", 1-1/8", 1.5", 1.5"(1-1/8" conversion)
Outer diameter size 50mmφ(1")
52mmφ(1-1/8")
65mmφ(1.5")

MANUAL


  • C-448+C-448-4

C-449
EXTENSION

For long head-tube (220 to 350mm)

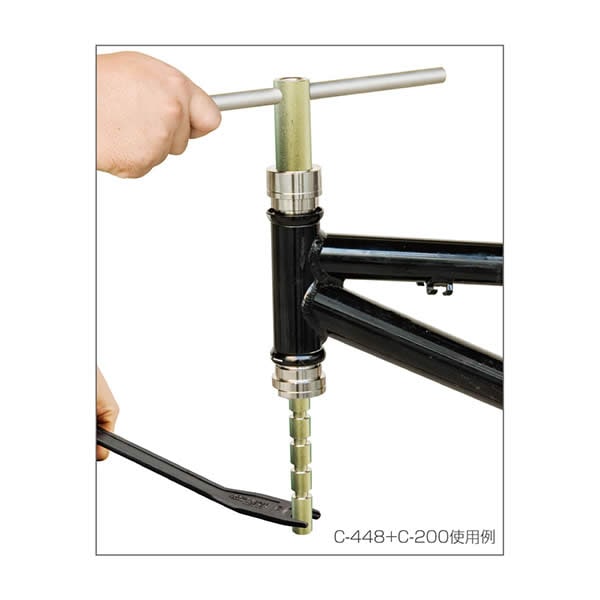

  • C-448+C-449+C-200
