K-210
CIRCULAR SAW

■Disk cutter (K-210-2), with angle guide and parallel guide

Rotation speed 3500 to 6000 rpm
Standard disk cutter K-210-2
Rated voltage / frequency 100V AC 50 / 60 Hz
Power consumption 200 W
Rated time 15 minutes
External dimensions 300（W）× 170（H）× 260（D） mm*
Weight 5.8 kg

■Power cable：2 m

* Max. width (500 mm) when work table is fully extended.

Cutting capacity
Sheet material type Sheet
thickness
mm		 Compatible
disk
cutters
PCB Glass epoxy 3 K-210-3
Ceramic 1
Metal Steel sheet
(without heat treatment)		 K-210-2
K-210-3
K-210-4
Aluminum sheet
(pure aluminum)		 5 K-210-2
K-210-4
Plastic 10
Wood 20
Note
Continuous operation which exceeds rated time. can cause a motor
failure, etc.
Even on & off at 1 to 2 minute intervals is considered continuous.
WarningWarning
●Do not wear gloves when working with this product.
●Always wear safety glasses when working with these tools.

Manual

Demonstration

■Demonstration

■Replacement part

K-210-2 / 3 / 4
DISK CUTTERS (K-210 dedicated blade)

■For K-210

Part no. Types Number
of teeth		 Outer dia.

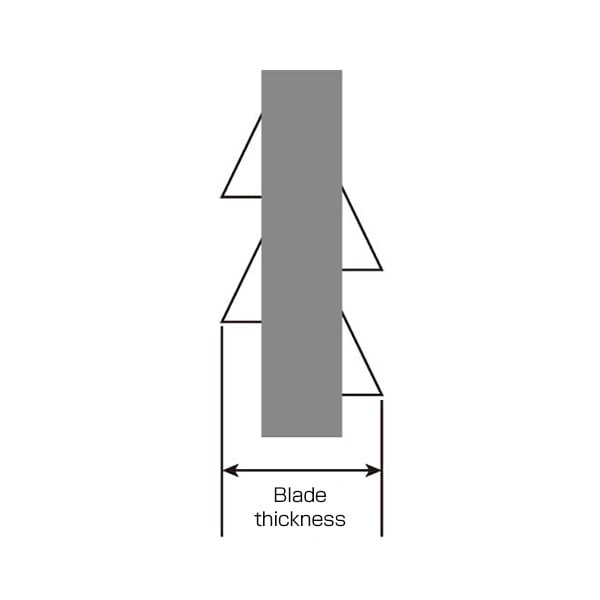

mmφ		 Blade
thickness
mm		 Application

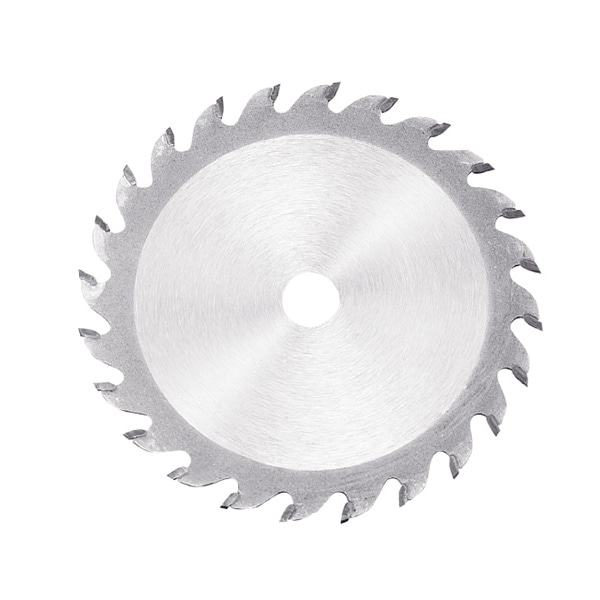

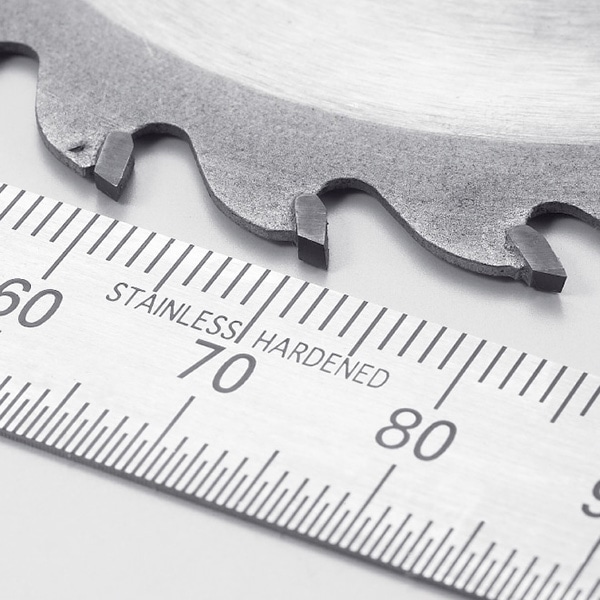

K-210-2 Carbide 24 teeth 85 1.2 Metal & plastic

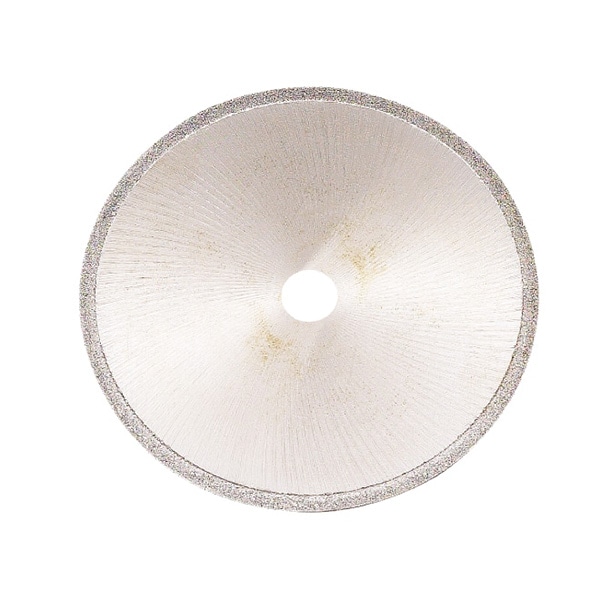

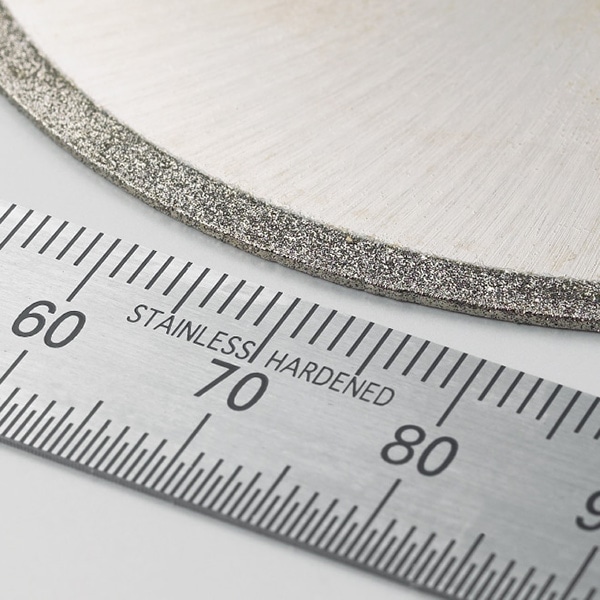

K-210-3 Diamond
(grid No.: #150)		 — 0.8 PCB & metal

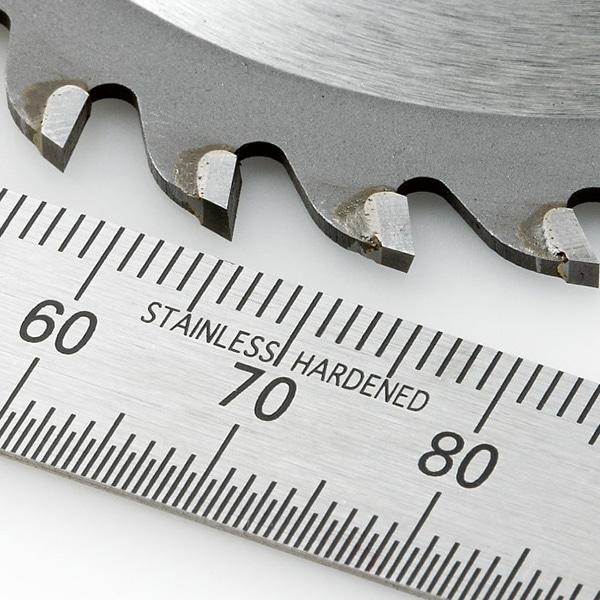

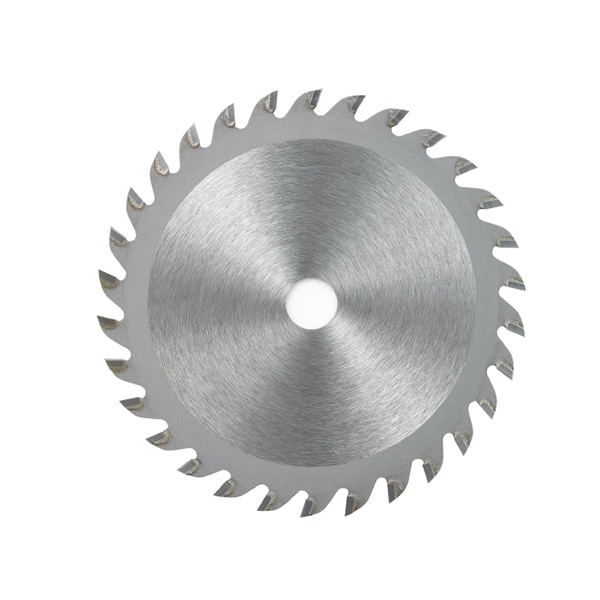

K-210-4 Carbide 30 teeth 1.6 Metal & plastic

K-210-10
DISK CUTTER SET

■Set contents：K-210-2 / K-210-3 / K-210-4
