L-835
USB CAMERA

  • PC
  • USB
  • RoHS10物質対応
  • CMOS500万画素
  • Windows10対応
  • Cマウント

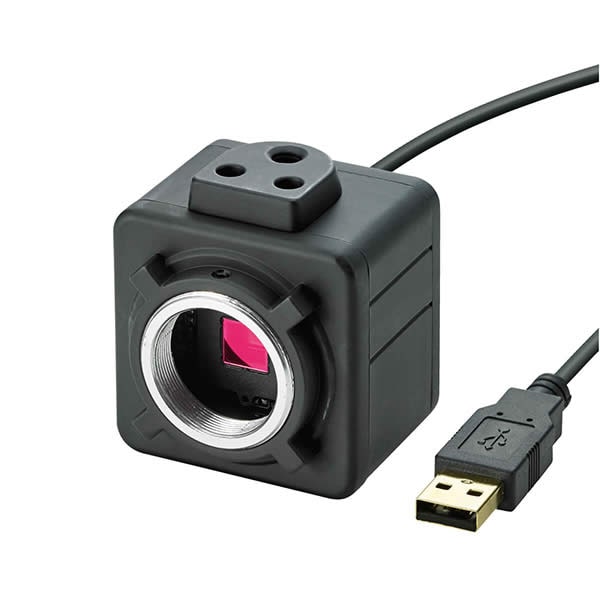

Over high-def inspection image camera equipped with 5.0Mega pixel CMOS image sensor.
High performance, lot of functions, simply USB installation and it's also very reasonably priced.

●Stress-free, really 30 frames per second capturing.

●With a female camera screw enables to fix to a tripods, accessory arm.

●In kit viewer application provides you easily operation for every functions each.

Image sensor 1 / 2.5" CMOS
Display resolution
(Max.)
2592 × 1944 (5.0 Mega pixels)
Save resolution
(Max.)
2592 × 1944 (5.0 Mega pixels)
1280 × 960 (1.2 Mega pixels)
Maximum frame rate 30 fps ( 640 × 480 )
10 fps ( 2592 × 1944 )
Lens mount type C Mount
Rated voltage 5VDC(USB)
Power consumption 0.35 W
Hardware requirement OS: Windows 10 / 8 / 7
(32bit & 64bit version)
CPU: Intel Core 2 Duo 1.6GHz
or over recommended
Main memory: 1GB or over
Availability
of hard disk:
20GB or over
USB 2.0
Software HOZAN USB cam software

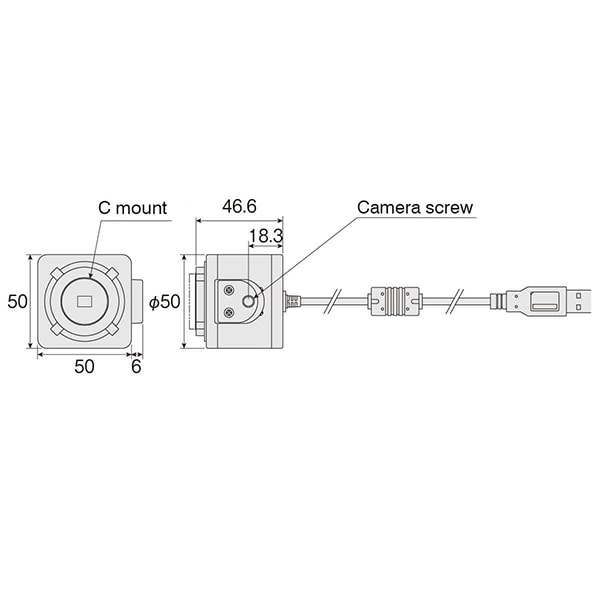

External dimensions 50(W) × 50(H) × 46.6(D)mm
Weight 170 g

■Cord length:1.8m

Manual

Software download


Microscope Combination 全34点

  • 新製品
  • PC
  • USB

» System diagram

L-835 Part. no Magnification X Field
of
view
mm
Working
distance
mm
Set contents
Lens Standard table LED lights
L-815 L-816 L-817 L-802-2 L-818 L-819 L-600-12 L-600-35 L-521 L-509 L-525 L-523 L-519 L-803 L-505 L-711*1 L-703 L-717 L-715

Standard type
L-KIT500 20×15 to 2.7×2.1 105
L-KIT501 90
L-KIT502 105
L-KIT503
L-KIT504 60
L-KIT571 9.9×7.4 to 1.4×1.0 105
L-KIT572 90
L-KIT573 105
L-KIT574
L-KIT638 6.6×4.9 to 0.9×0.7 105
L-KIT639 90
L-KIT640 105
L-KIT641
L-KIT508 29×22 to 4.6×3.5 175 to 45
L-KIT509 155 to 45
L-KIT510 175 to 45
L-KIT511
L-KIT512 29×22 to 12×9.1 95 to 40
Wide type
L-KIT505 20×15 to 2.7×2.1 105
L-KIT506 90
L-KIT507 105                         *2
L-KIT575 9.9×7.4 to 1.4×1.0
L-KIT576 90
L-KIT577 105                         *2
L-KIT642 6.6×4.9 to 0.9×0.7 105
L-KIT643 90
L-KIT644 105                         *2
L-KIT513 29×22 to 4.6×3.5 175 to 45
L-KIT514 155 to 45
L-KIT515 175 to 45                     *2
Arm type
L-KIT516 180×135 to 45×34 385 to 100
L-KIT578 188×141 to 45×34 400 to 100
L-KIT517 64×48 to 40×30 400 to 250
L-KIT579

*1 Accessory: L-711-1 Filter

*2 Accessory: L-703-1 Clamp Set

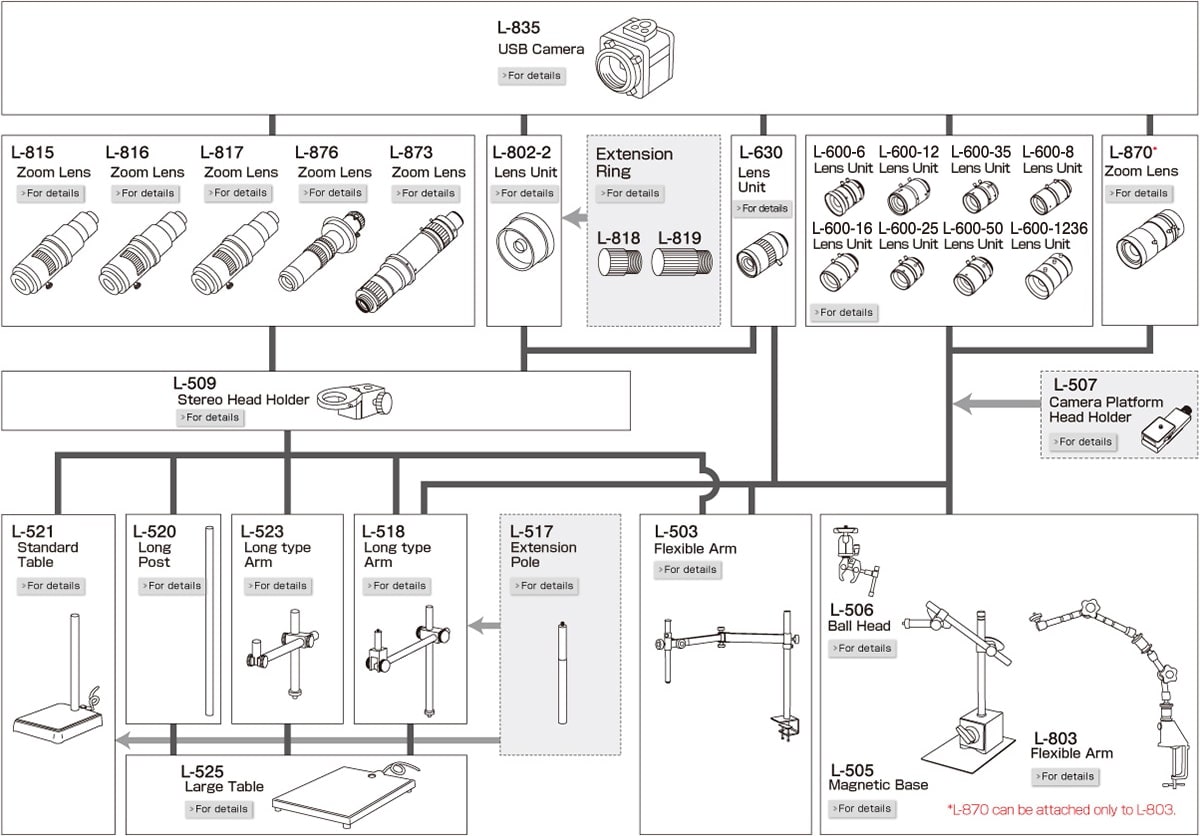

L-835 System diagram
