HOZAN Logo

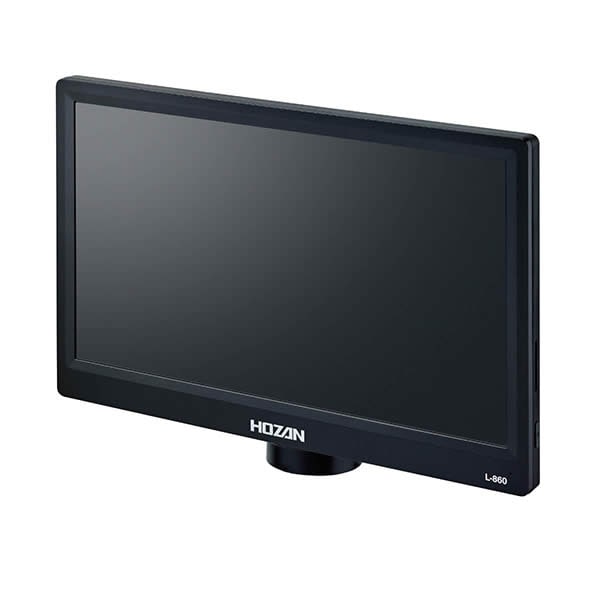

L-860
MICROSCOPE CAMERA
WITH DISPLAY

  • 内蔵
  • 画像・動画保存
  • ラインマーカー
  • CMOS200万画素
  • Cマウント
Image sensor 1 / 2.8" CMOS
Resolution 1920 × 1080(2 Mega pixels)
Image output effective pixels Still image 1920 × 1080(2.0 Mega pixels)
Motion Video 1920 × 1080(2.0 Mega pixels)
File formats Still image JPG
Motion Video AVI
Maximum frame rate 30 fps
Lens mount type C mount
Monitor Glare (gloss) liquid crystal IPS method
Size: 11.6 inches wide
Rating 12V DC(with adapter)
Power consumption 6.6 W

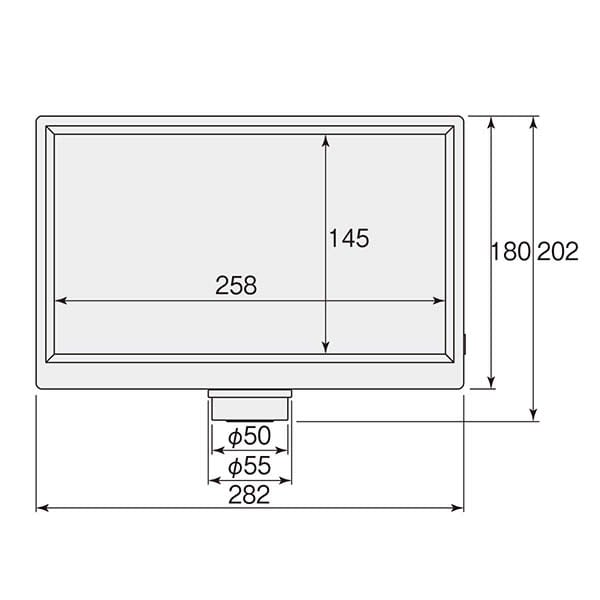

External dimensions 282(W) × 202(H) × 62(D)mm
Weight 760 g

■Accessories : USB mouse, SDHC memory card.

Manual

Software download


Microscopes list

» Microscopes list


L-860 System diagram
