HOZAN Logo

H-600

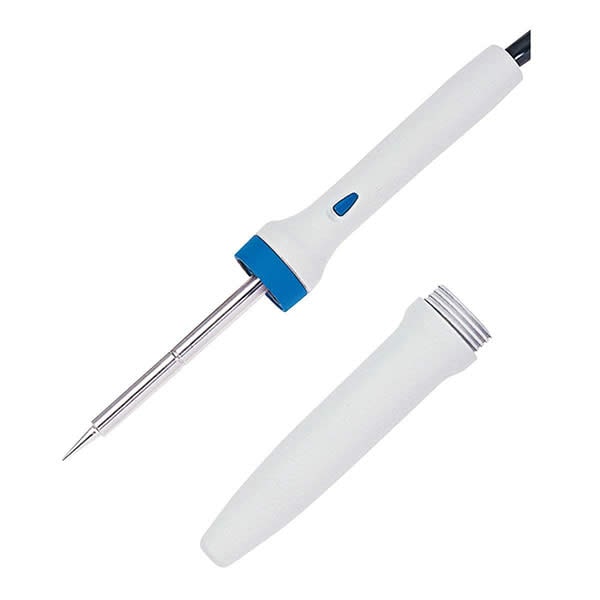

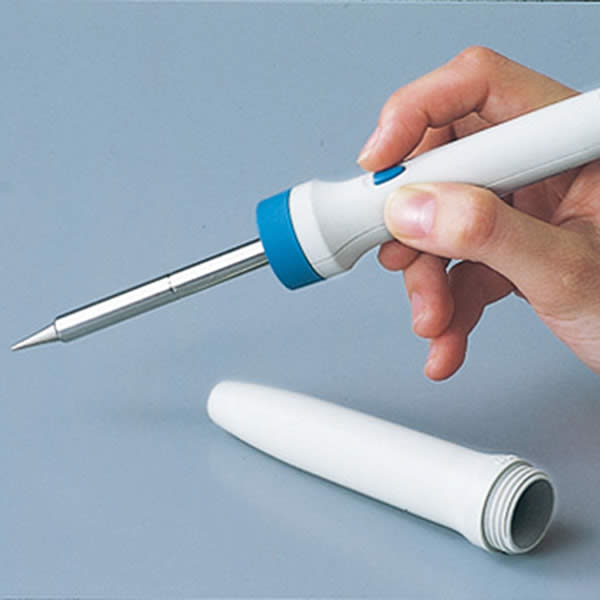

SOLDERING IRON WITH BOOSTER

H-600

H-600-230

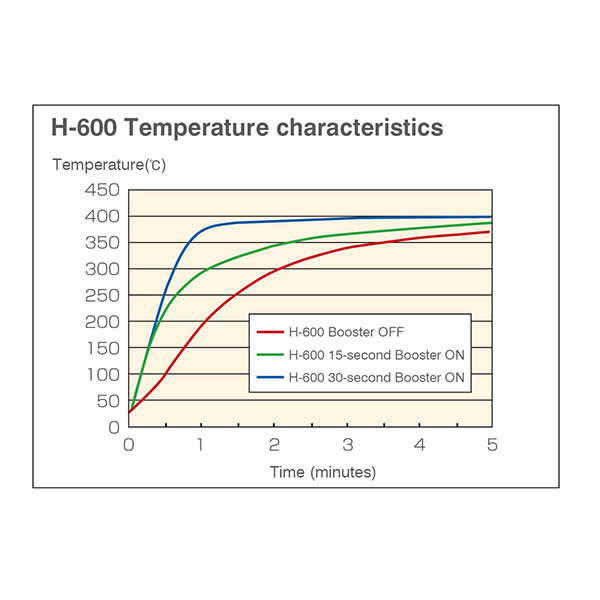

* The heater current and heat volume increase only when the boost function is ON.

* Do not press the boost switch continuously for more than 30 seconds.

■Power cord:1.5 m

Rated voltage / frequency 100 V 50 / 60 Hz(H-600)
230 V 50 / 60 Hz(H-600-230)
Power consumption 19 W(130 W with boost)
Max. temperature 410 ℃
Insulation resistance 200 MΩ(when stabilized without boost)
Standard tip H-602
OAL 205 mm(not including the cord)
Weight 160 g(not including the cord)

Manual(H-600)

Manual(H-600-230)

■Replacement parts

H-601
HEATER

H-601

H-601-230

■Compatible model: H-600

H-602
SOLDERING TIP

■Point type: B

■Compatible model:H-600

* The tip is tinned with lead-free solder.
