HOZAN Logo

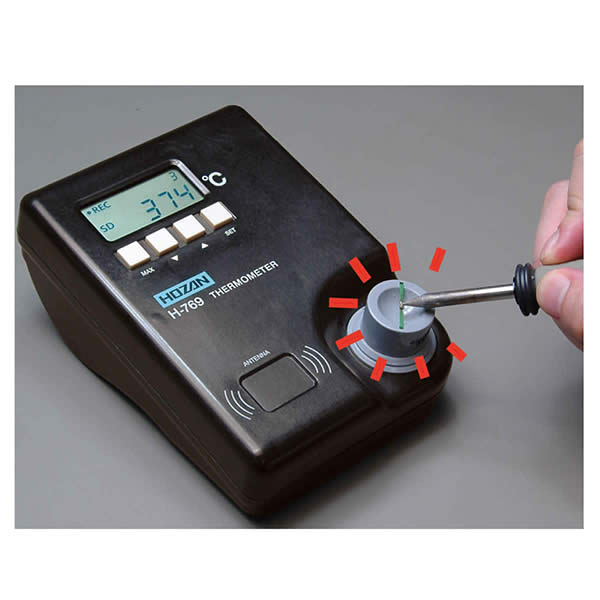

H-769
SOLDERING IRON THERMOMETER

Measurement range 0 to 500 ℃
Sensor H-768
Resolution 1 ℃
Accuracy 0 to 100 ℃ ±(0.1 % rdg + 2 dgt)
101 to 500 ℃ ±(1.0 % rdg + 1 dgt)
Max. reading 999 count
Sampling rate 1.25 times / sec.
Power supply AA (R6) batteries × 4
Battery life Approx. 75 hours (continuous use)
External dimensions 110(W)× 66(H)× 155(D)mm
Weight 430 g

H-769-TA
SOLDERING IRON THERMOMETER
(with calibration certificate)

* Because the certificate will bear the purchaser's name (company name, etc.) , your name is required when ordering.

Manual

Software download

■Replacement parts

H-769-1
IC TAG

■Quantity:5

■For H-769

H-763 / H-768
SENSOR

●The 2 types are available shown at right.

Soldering iron guideline Sensor
30 W or more H-763
11 W or more H-768
(Standard accessory item)

■For digital type (Thermocouple K-class 2)
