■Power cord:1.8 m
| Rated voltage / frequency | 100V AC, 50 / 60Hz | |
|---|---|---|
| Power consumption | 170 W | |
| Heater | Ceramic heater | |
| Setting temperature | 360 to 480 ℃ | |
| Standard heater unit | HS-812 | |
| Pump | Diaphragm type | |
| Max. vacuum | -80 kPa | |
| External dimensions | Station | 135（W） × 129（H） × 200（D）mm |
| Weight | Station | 2.3 kg |
| Soldering iron | 170 g | |

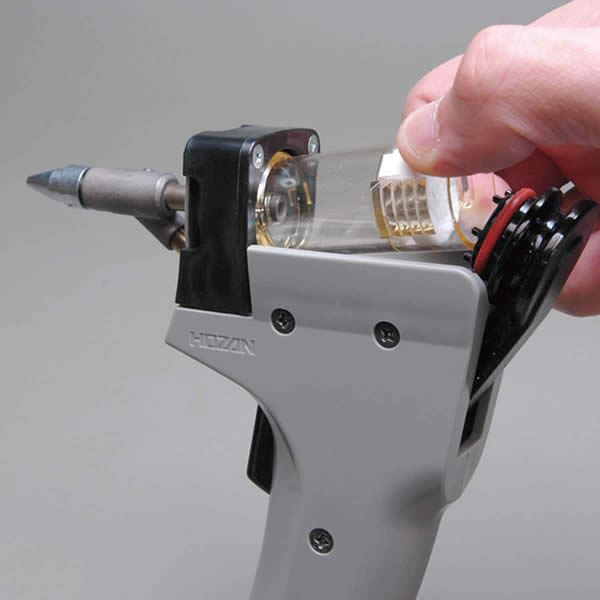

■HS-821 FILTER CARTRIDGE
■HS-826 FILTER GASKET
■HS-827 NIPPLE GASKET
■Quantity: 1 piece
* For protection, the nozzle tip is tinned with lead-free solder when shipping.
| Part No. | Nozzle bore mmφ |
|---|---|
| HS-811 | 0.8 |
| HS-812 | 1 |
| HS-813 | 1.6 |
| HS-814 | 0.75 |
| HS-815 | 1.3 |
Paper filter sets for HS-821.
■Quantity: 10 sets
■Use the sponge in a wetted condition.
* A separate sponge should be used for lead-free solder and tin-lead solder.
| Part. No | External dimensions mm |
Compatible models | Quantity |
|---|---|---|---|
| H-118 | 55（W）×45（D）×2（H） 60（W）×50（D）×20（H） |
H-6 / H-8 / HS-802 |
2 |
Using the tip cleaner
■For HS-801 / 802

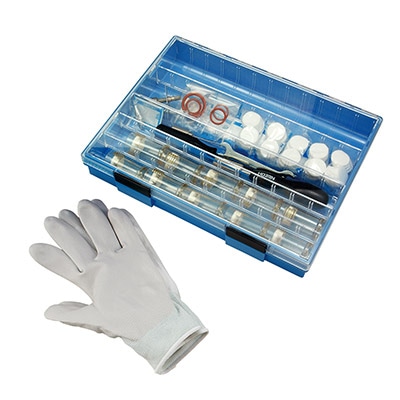

| Parts Box | B-50-EF |
|---|---|
| Teflon packing | HS-802-14 |
| Pipe Cleaning Rod | HS-802-18 |
| Nozzle Cleaning Rod | HS-802-21 |
| Heater Unit | HS-810 |
| Nozzle（1 mmφ） | HS-812 |
| Filter Cartridge（×10） | HS-821 |
| Pump Filter（×5） | HS-822 |
| Filter O-ring Set（×2） | HS-826 |
| Nipple O-ring（×2） | HS-827 |
| Nozzle Box | |
| Nozzle Spanner | |
| Work Gloves |
