CL-911 Clean Booth [HOZAN] HOZAN CO., LTD.

CL-911
CLEAN BOOTH

Fan Filter Unit (FFU)
Rated voltage / frequency	100V AC 50 / 60 Hz
Power consumption	64 / 60 W（50 / 60 Hz）
Filter type	HEPA（main filter）, non-woven fabric（pre-filter）
Trapping efficiency	0.3 µm 99.97 % or higher
Airflow rate	9.0 / 10.5 m³ / min（50 / 60 Hz）
Airflow velocity	0.4 / 0.5 m / s（50 / 60 Hz）（with HEPA / Pre-filter installed）
Weight	13.5 kg （with HEPA / Pre-filter installed）

Booth

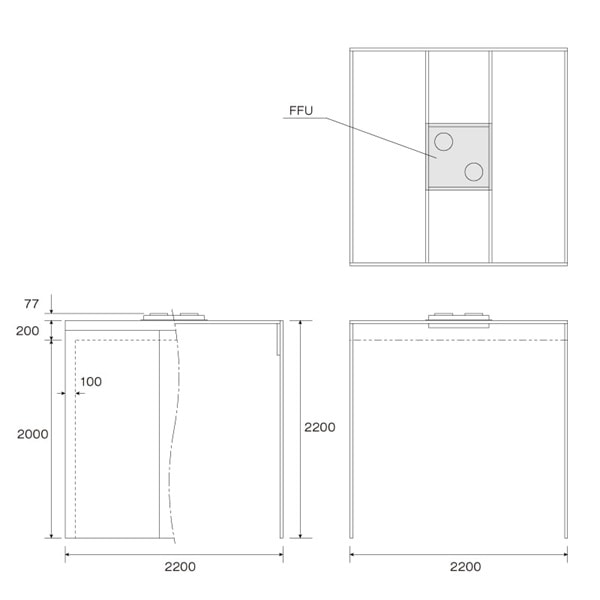

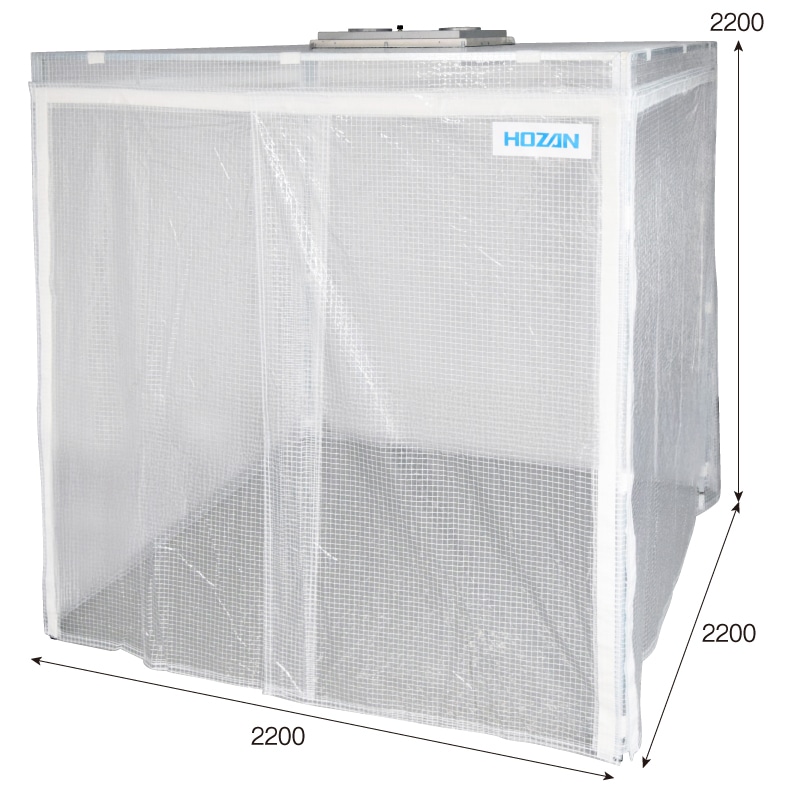

External dimensions	2200（W） × 2200（H） × 2200（D）mm
Booth capacity	10.6 m³
Air exchange rate	51 times / hr （50 Hz） 59 times / hr （60 Hz）
Cleanliness class	class 5 (ISO14644-1 / JIS B 9920-1)、100（federal standard 209E）
Sheet material	Fiber reinforced PVC sheet (contains antistatic agent) thickness 0.3 mm

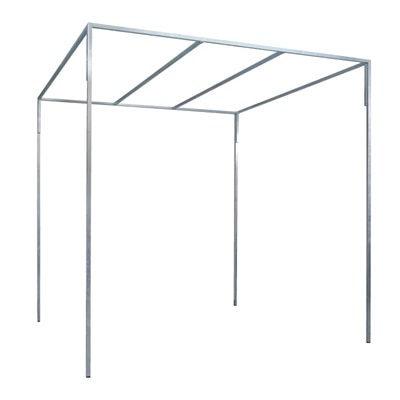

Frame material	Steel
Weight	54.5 kg

■Fan set (includes HEPA filter)

■HEPA filter only

■Pre-filter only

■4 filters provided

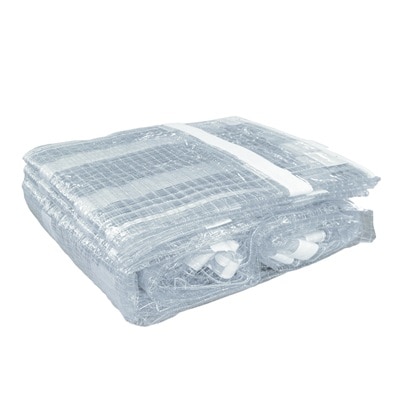

■Sheet material:Fiber reinforced PVC sheet
(contains antistatic agent) thickness 0.3 mm

■Weight:6.7 kg

■Compatible model:CL-911

■Quantity:1

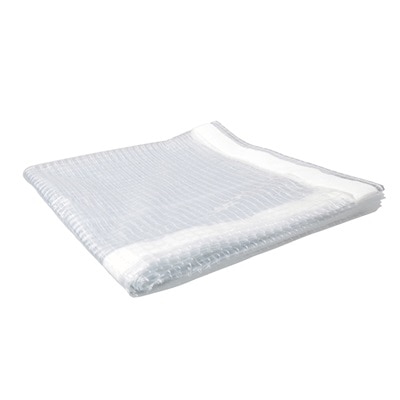

■Sheet material:Fiber reinforced PVC sheet
(contains antistatic agent) thickness 0.3 mm

■Weight:2.3 kg

■Compatible models:CL-911, Z-912

■Quantity:1

■Sheet material:Fiber reinforced PVC sheet
(contains antistatic agent) thickness 0.3 mm

■Weight:2 kg

■Compatible models:CL-911, Z-912

■Quantity:1

■Quantity:1

■Compatible models:CL-911、CL-917、Z-912

■Quantity:1
