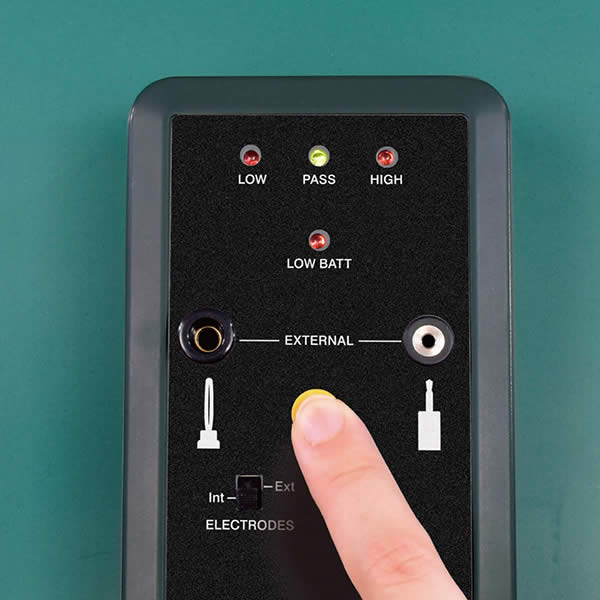

Indications | LOW | Rg<1×104Ω |
---|---|---|
PASS | 1×104Ω≦Rp<1×1010Ω *Buzzer sounds with PASS | |
HIGH | 1×1010Ω≦Rp | |
Accuracy | ±10% | |
Power supply | 6LR61/6LF22 × 1 | |
Battery life | 1500 times or more | |
External dimensions | 76(W) × 27(H) × 135(D) mm | |
Weight | 160 g |
* Because the certificate will bear the purchaser's name (company name, etc.) , your name is required when ordering.

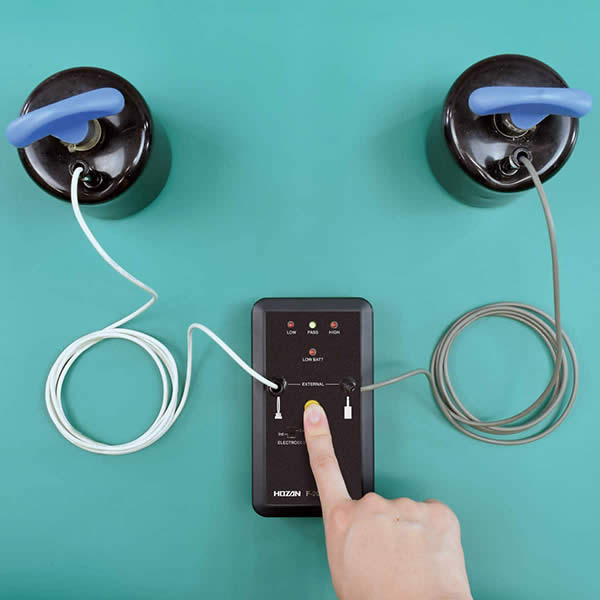

■Quantity:2
■Outer dia.:79 mmφ × 110 mm
■Weight:2.3 kg
■With 2 Alligator clips
■External dimensions:20mmφ×60mm
■Weight:50 g
■Cord length:900mm
