F-237

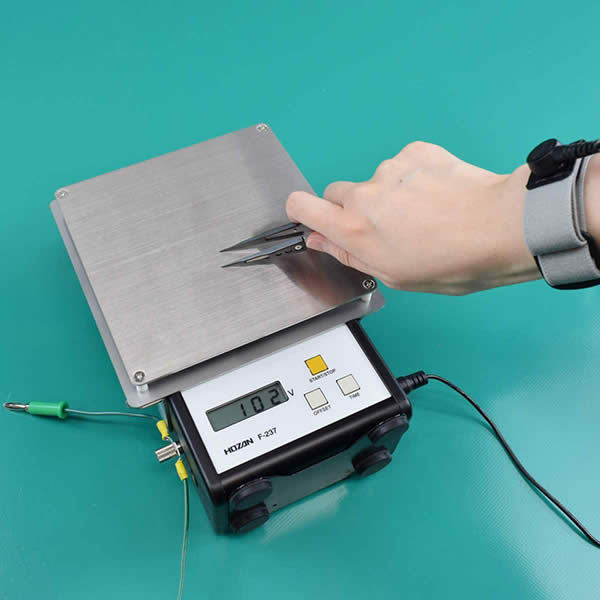

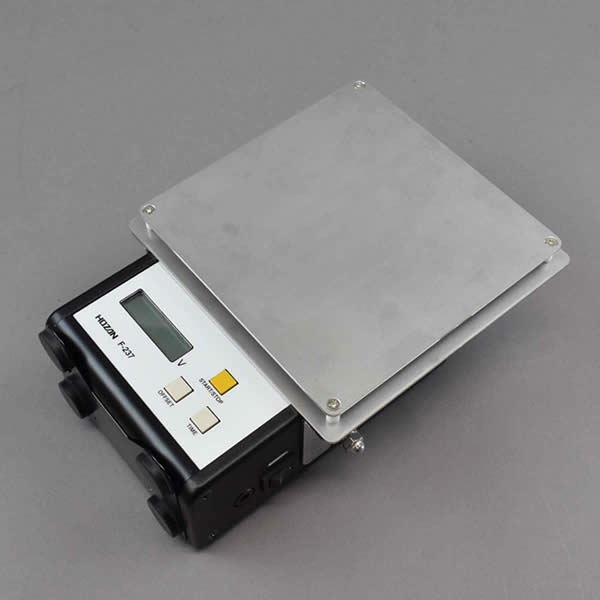

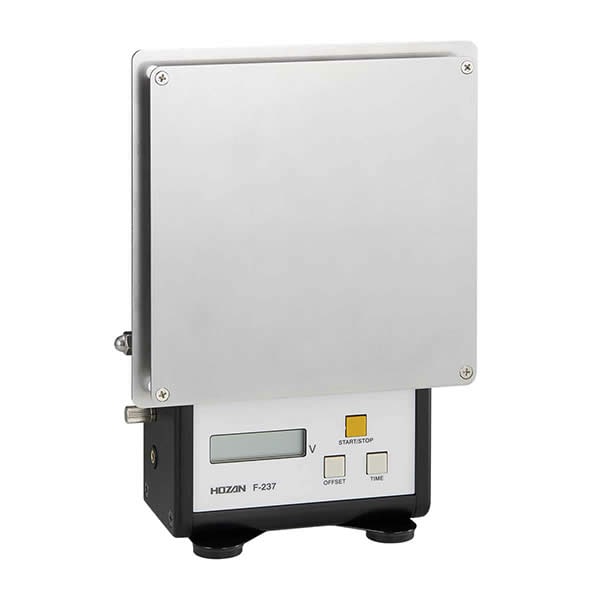

CHARGE PLATE MONITOR
| Measurement range | 0 to ±1200V |
|---|---|
| Accuracy | ±10% |
| Power supply | DC 12V (With AC adapter) |
| Power consumption | 2.1 W |
| Outer dia. | Main unit:160（W） × 230（H） × 90（D） mm Plate:150（W） × 150（H） × 1（D） mm Carrying Case：180（W） × 100（H） × 250（D） mm |
| Weight | 1.8kg |

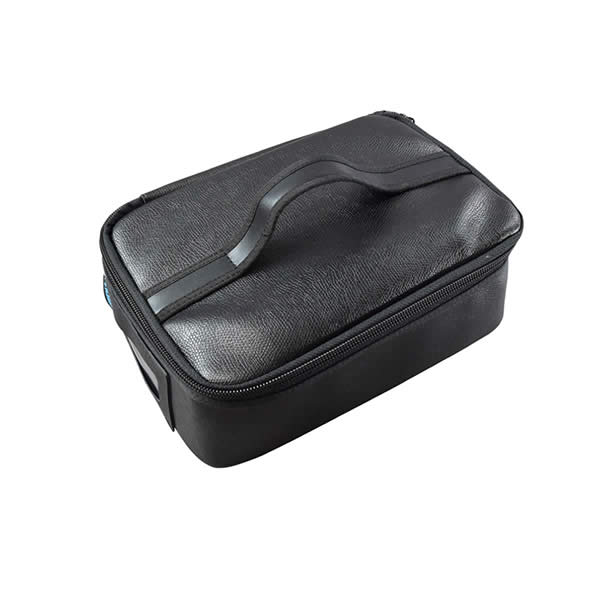

■Set contents： Charge tool, Ground code(2m × 1 / 0.1m × 1), USB cable(1.8m), Alligator clips, AC adapter, Carrying Case
F-237-TA
CHARGE PLATE MONITOR
（with Calibration Chart）
* Because the certificate will bear the purchaser's name (company name, etc.) , your name is required when ordering.
