HOZAN Logo

P-848

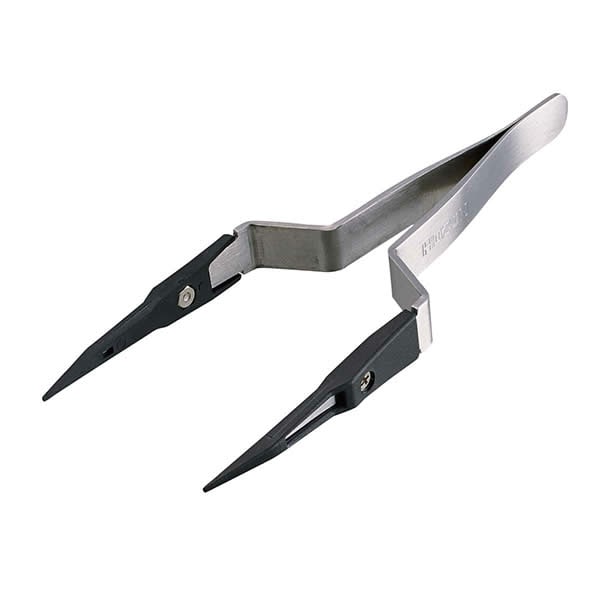

ESD TIP TWEEZERS

  • discon
  • epa
  • RoHS
  • non magnetic
    Tip only
  • chip
Material Color Heat resistant
ESD standard
Ω
Weight
g
Replacement
parts
Tip Body
PEEK*1 Stainless Black 315
(Tip)
Rg < 1 × 1012 19 P-610S-1

*1 PEEK (polyether ether ketone) is an engineering plastic that has particularly good mechanical properties and heat resistance.

■Replacement parts

ESD Tip / Plastic Tip / Tweezers Tip

  • non-magnetic
  • RoHS
Part. no Product Name size Material Color Heat
resistant
temp.
ESD standard
Ω
Quantity
A B Tip width
P-610S-1 ESD tip 49 10 1.2 PEEK*1 Black 315 Rg < 1 × 1012 2-piece set
P-611S-1 0.4
P-612S-1 50 1.0
(R-type)
P-613S-1 45 2.3
(R-type)
P-610P-1 Plastic Tip 49 1.2 PBT*2 White 220 -
P-614P-1 0.6
P-610G-1 Tweezers Tip 2.0 Polypropylene + Elastomer White + gray 100

*For P-610 to 620 series

*1 PEEK (polyether ether ketone) is an engineering plastic that has particularly good mechanical properties and heat resistance.

*2 PBT(poly butylene terephthalate)is an engineering plastic that has particularly good mechanical properties and heat resistance.

  • P-610S-1
  • P-611S-1
  • P-612S-1
  • P-613S-1
  • P-610P-1
  • P-614S-1
  • P-610G-1
