REPLACEMENT PARTS [HOZAN] HOZAN TOOL INDUSTRIAL CO., LTD.

▲

Part. no	Product Name				Material	Color	Heat resistant temp. ℃	ESD standard Ω	Quantity
Part. no	Product Name	A	B	Tip width	Material	Color	Heat resistant temp. ℃	ESD standard Ω	Quantity
P-815S-1	Tip	55	10	1.2	PEEK*¹	Black	160	Rg<1×10¹²	2-piece set
P-816R-1		45		2.3 （R-type）	PLA*²	White	80	-
P-814H-1		55		0.4	PEEK*¹	Blown	315	-

*¹ PEEK (polyether ether ketone) is an engineering plastic that has particularly good mechanical properties and heat resistance.

*² PLA (polylactic acid) is a chemically synthesized biodegradable plastic.

Part. no	Product Name				Material	Color	Heat resistant temp. ℃	ESD standard Ω	Quantity
Part. no	Product Name	A	B	Tip width	Material	Color	Heat resistant temp. ℃	ESD standard Ω	Quantity
P-610S-1	ESD tip	49	10	1.2	PEEK^*1	Black	315	Rg < 1 × 10¹²	2-piece set
P-611S-1		49		0.4
P-612S-1		50		1.0 （R-type）
P-613S-1		45		2.3 （R-type）

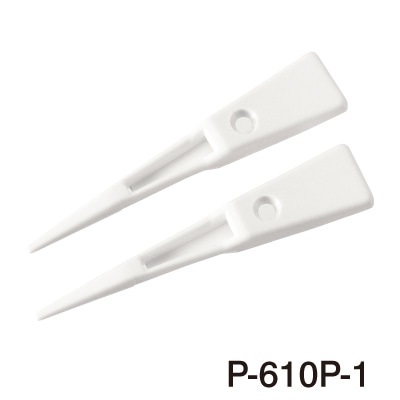

P-610P-1	Plastic Tip	49		1.2	PBT^*2	White	220	-
P-614P-1	Plastic Tip			0.6	PBT^*2	White	220

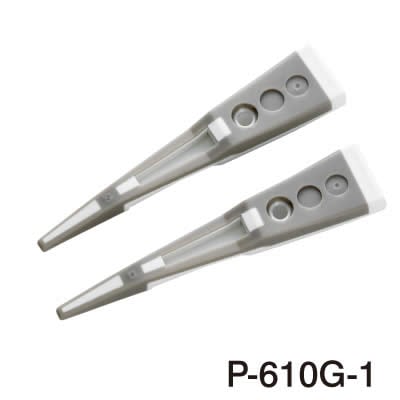

P-610G-1	Tweezers Tip			2.0	Polypropylene + Elastomer	White + gray	100

*For P-610 to 620 series

*¹ PEEK (polyether ether ketone) is an engineering plastic that has particularly good mechanical properties and heat resistance.

*² PBT（poly butylene terephthalate）is an engineering plastic that has particularly good mechanical properties and heat resistance.
