D-530 to D-555
PHILLIPS SCREWDRIVER
-
- *Except for Product D-555-300
| Part no. | Tip size | OAL mm |
Blade length mm |
Blade diameter mmφ |
Handle diameter mmφ |
ESD standard Ω |
Weight g |
|---|---|---|---|---|---|---|---|

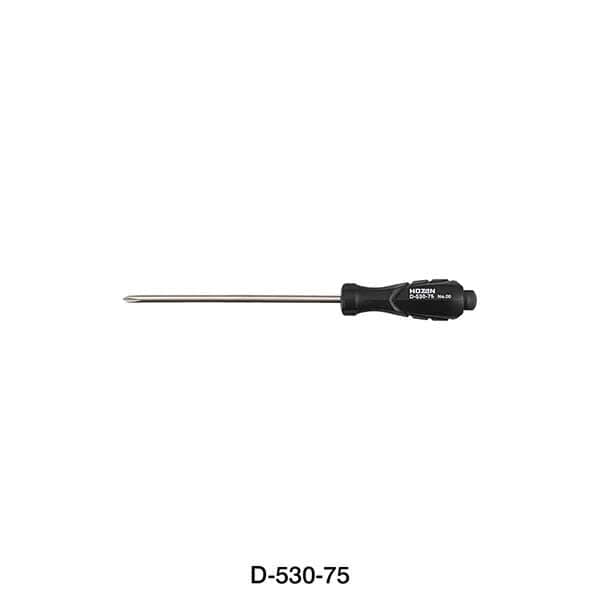

| D-530-75 |
No.00
|
124 | 75 | 3.0 | 15.4 | Rg<1×1012 | 9 |

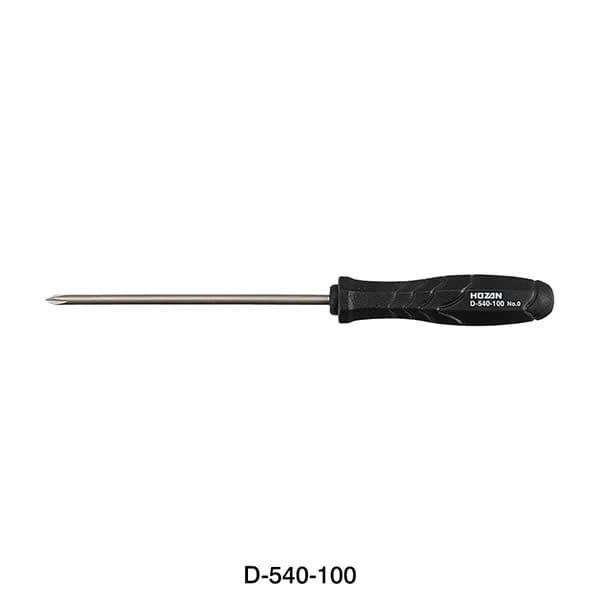

| D-540-100 |
No.0
|
178 | 100 | 4.0 | 19.8 | 25 | |

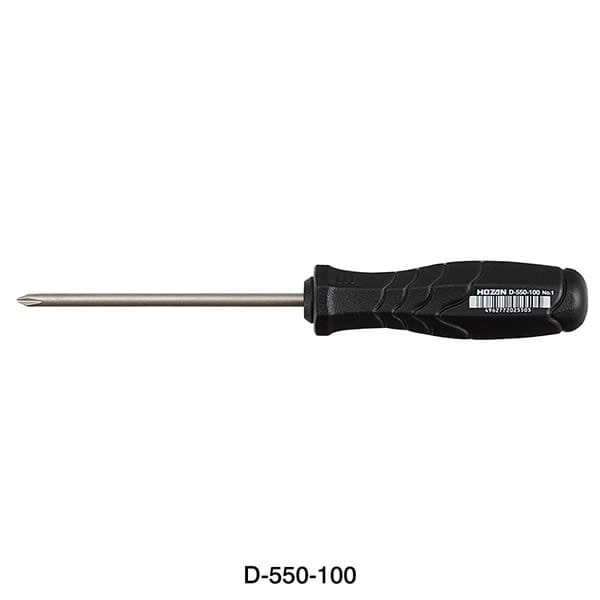

| D-550-100 |
No.1
|
200 | 5.0 | 30.0 | 57 | ||

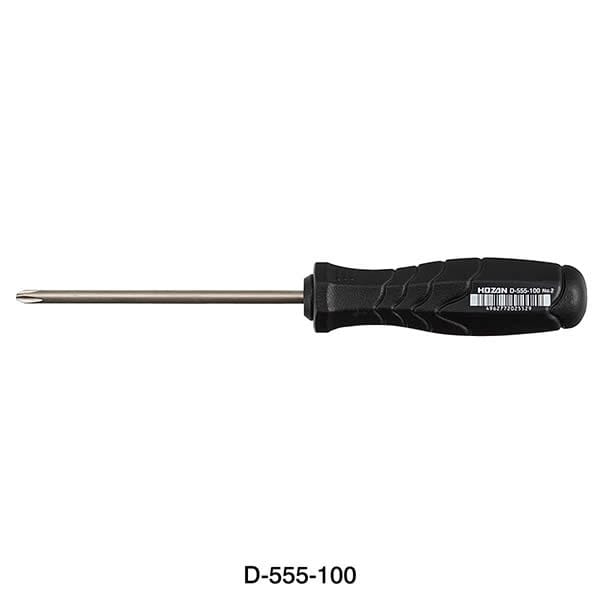

| D-555-100 |
No.2
|
Charge decay time from 1000V to 100V: less than 2 seconds |
|||||

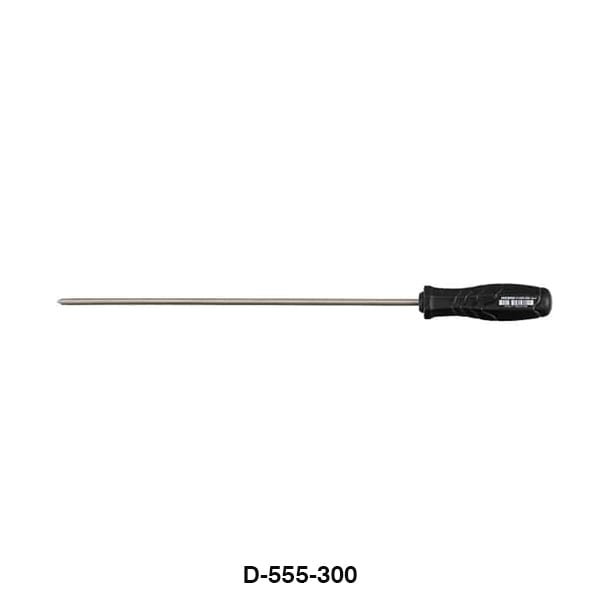

| D-555-300 | 410 | 300 | 6.0 | 33.5 | - | 124 |
-
Warning
- ●A screwdriver is designed to turn screws, and should not be used for any other purpose.
- ●Do not use where electrical currents exist.
