HOZAN Logo

W-230
ADJUSTABLE WRENCH wrench mark

  • RoHS
Part no. Max.
torque
(N·m)
Compatible
Bolts & nuts

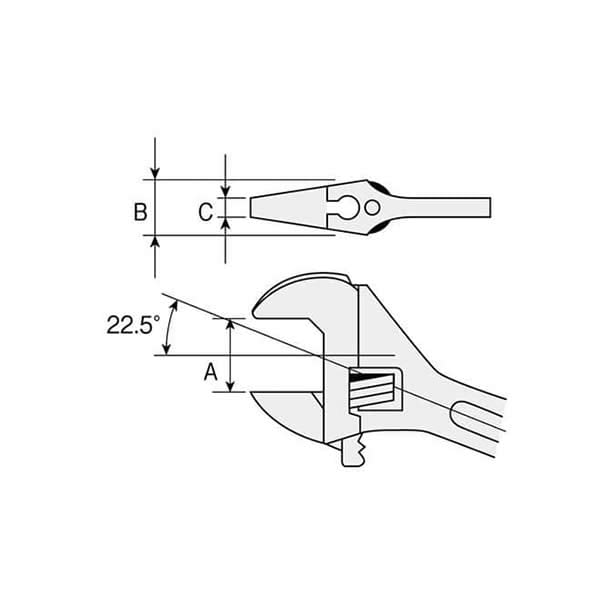

Max.
opening width
A mm
Head thickness OAL
mm
Weight
g
B mm C mm
W-230-100 60 M8 or smaller 13 10 5 110 50
W-230-150 142 M12 or smaller 20 11 6 160 120
W-230-200 274 M16 or smaller 25 14 7.5 210 230
W-230-250 460 M18 or smaller 30 16 8 260 410

Bit width-across-flats: 6.35 mm

* Use care to avoid applying excessive torque.

warningWarning
●Do not use where electrical currents exist.
