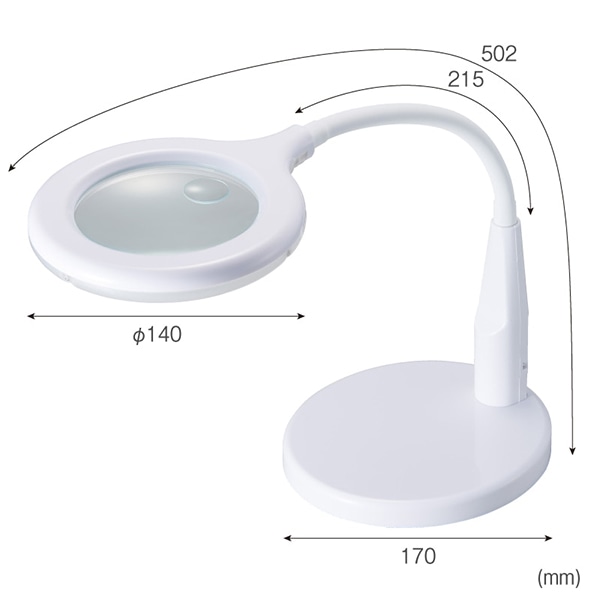

L-660
LED ILLUMINATED MAGNIFIER
| Magnification | Linear magnification：Main lens 1.75X、Sub lens 4X |
|---|---|
| Area magnification：Main lens Approx. 3X、Sub lens 16X | |
| Lens specifications | Blue lens |
| Lens diameter | 95mm φ |
| LED | White power LED × 56 |
| LED life*1 | Approx. 120,000 Hrs. |
| Risk group *2 | Exempt group |
| Color temp. | 6200 K |
| Rated voltage | 12 VDC (with accessory AC adapter) |
| Power consumption | 10 W |
| Weight | 840 g |
■Accessories: AC adapter, Lens cover
*1 Varies according to the environment
*2 A classification indicating the level of biological damage potentially caused by lighting equipment such as LEDs.（JIS C 7550 / IEC62471）
| Distance from the light source mm |
Illuminance lx |
|---|---|
| 100 to 150 | 11500 to 7000 |
