F-109D
SURFACE RESISTANCE CHECKER
| Measurement range | 9.00×102Ω or more, 2.00×1012Ω or less |
|---|---|
| Applied Voltage | When the measured object is less than 1.00 × 106Ω: 10 V When the measured object is 1.00 × 106Ω or more: 100 V |
| Accuracy | ±10% (However, ±20% for 1.00 × 1011Ω or more) Reference: RCJS-5-1 requirements — Equipment used for acceptance testing: Accuracy ±20% |
| Power supply | 9V laminated battery (6LR61/6LF22) × 1 |
| Battery life | More than 1000 times (in continuous measurement mode) |
| External dimensions | Main unit：85（W） × 40（H） × 170（D）mm(Excluding protrusions) Electrodes：79 mmφ × 110 mm（Conductive pad section:63.5mmφ） Carrying Case：290（W） × 170（H） × 130（D）mm |
| Weight | 5.1 kg Main unit:300 g(Batteries not included), Electrodes:2.3 kg（1 piece） |
■With auto power-off function

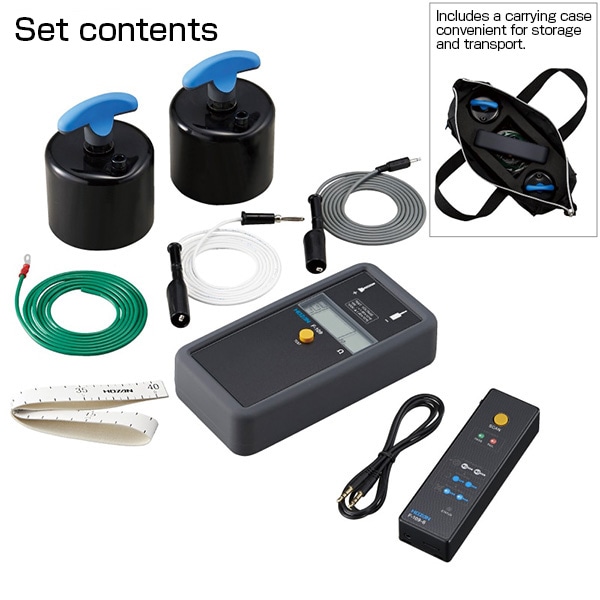

■Accessories: Electrodes × 2, Connection Cords（1.5m）× 2, ground cord, alligator clip × 2, Cloth measuring tape(40cm), Carrying Case

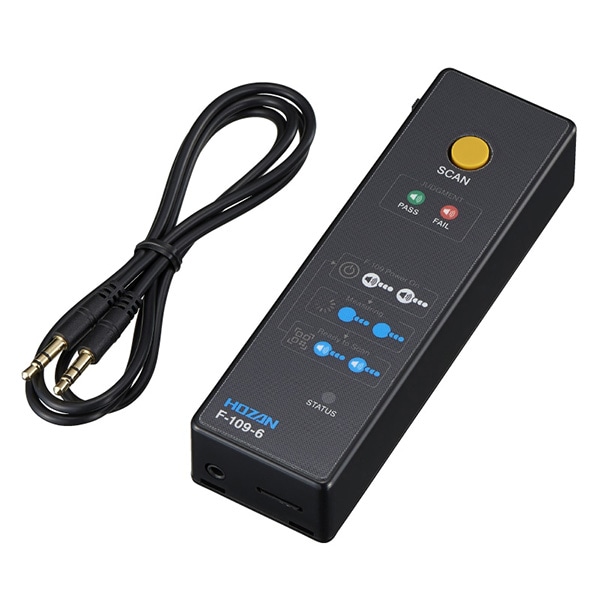

| Readable Codes | QR Code * |
|---|---|
| Recorded Items | Date & Time / Individual Identification Code (Read Code) / Measurement Results / Judgment Results |
| File formats | CSV |
| Recording Media | microSD / SDHC Memory Card（Max. 32GB） |
| Power supply | AA alkaline batteries × 2 Lithium coin battery (CR1220) × 1 |
| Battery life | More than 1000 times |
| External dimensions | 40（W） × 26（H） × 130（D）mm (Excluding protrusions) |
| Weight | 70 g (Batteries not included) |
* QR Code is a registered trademark of DENSO WAVE INCORPORATED.
■Accessory: Connection Cords
F-109D-TA
SURFACE RESISTANCE CHECKER
（with calibration certificate）
* Because the certificate will bear the purchaser's name (company name, etc.) , your name is required when ordering.
