L-838

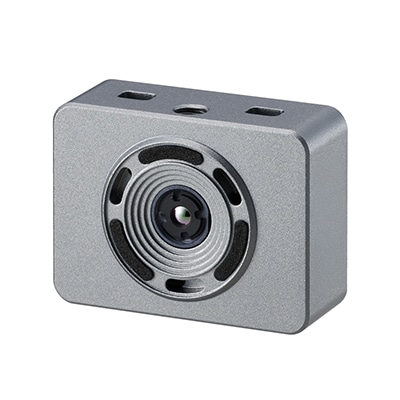

THERMOGRAPHY USB CAMERA
| Detection Wavelength Range | 8 to 14µm |
|---|---|
| Effective Pixel Count (Maximum) | 256 × 192（Approx. 5 Mega pixels）*1 |
| Frame Rate (Refresh Rate) | 25Hz |
| Temperature Measurement Range*2 | −20℃ to +600℃ |
| Power Consumption | 0.27 W |
| Operating Environment | Windows 10 or later.*3 |
| Weight | 1.5 kg |

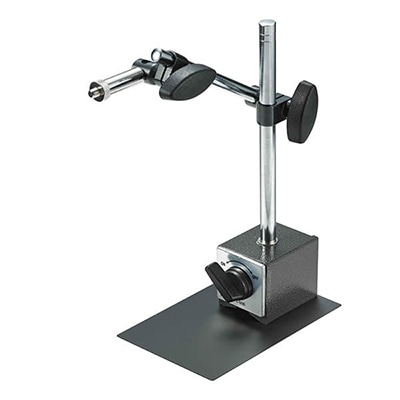

■Accessories:Conversion Lens、USB Cable、Arm Stand（Includes 2 Types of Shafts）、Base Plate
*1 When using the maximum pixel resolution, set the working distance between 100 and 150 mm.（When using the conversion lens, set the working distance to 30 mm.）
*2 Emissivity settings are required for temperature measurement.
*3 We do not provide any guarantees or support for issues that occur while using this product with an OS for which support has ended by Microsoft Japan.
| Working distance mm |
Field of view mm |
|---|---|
| 150 | 160 × 115 |
| 100 | 106 × 77 |
| 30 | 32 × 23 |
