D-840
NUT DRIVERS
- D-840-5.5
Warning- ●Do not use where electrical currents exist.
- TOP
- >
- PRODUCTS【Cutters & Pliers】
- >
- D-840
D-840
| Part no. | Width-across-flats mm |
OAL mm |
Blade length mm |
Blade diameter mmφ |
Handle diamete mmφ |
Box dia. mmφ |
Box depth mm |
Compatible nuts | ESD standard Ω |
Weight g |
|---|---|---|---|---|---|---|---|---|---|---|

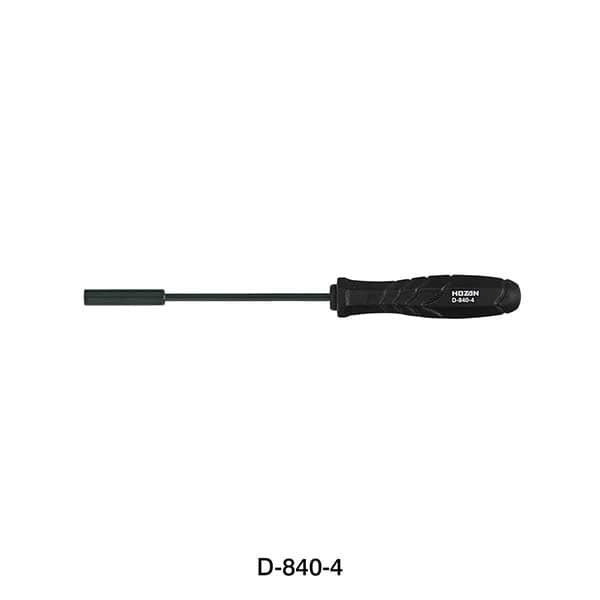

| D-840-4 | 4 | 178 | 100 | 4 | 19.8 | 7.0 | 18 | M2 | - | 29 |
| D-840-5 | 5 | 200 | 5 | 30.0 | 8.0 | M2.5 | - | 62 | ||

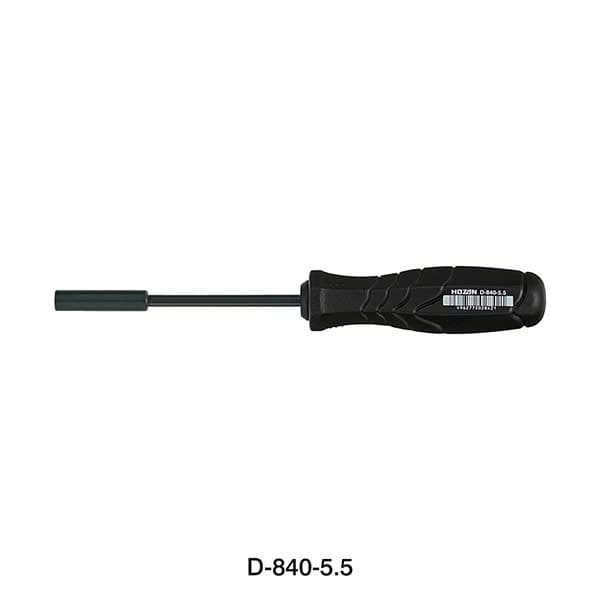

| D-840-5.5 | 5.5 | 9.0 | M3 | Rg<1×1012 | 64 | |||||

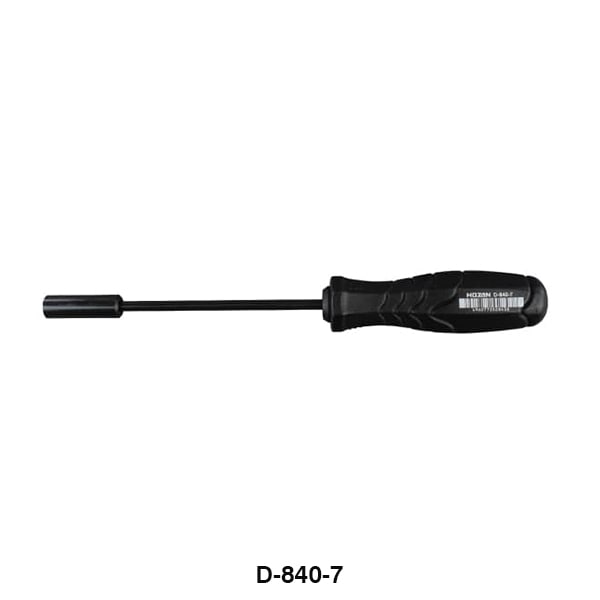

| D-840-7 | 7 | 225 | 125 | 11.0 | M4 | - | 76 | |||

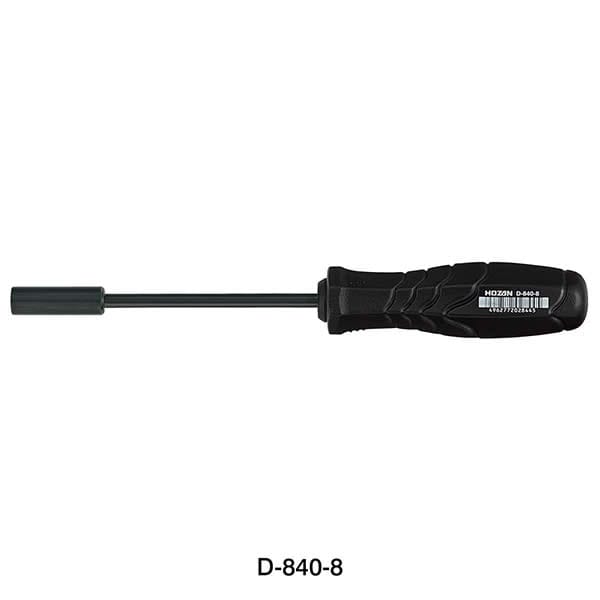

| D-840-8 | 8 | 235 | 6 | 33.5 | 12.0 | M4.5 / M5 | - | 102 | ||

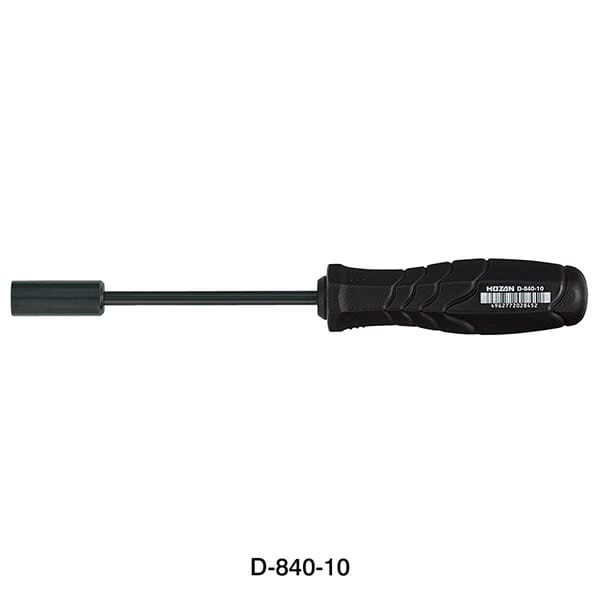

| D-840-10 | 10 | 14.0 | M6 | - | 109 |
