K-100
BAND SAW

■Accessories: replacement blade (K-100-2), angle guide.

Adjustable feed
(variable)
130 to 200 m / minute
Standard blade K-100-2
Widest point 150 mm
Cuttable thickness max. 75 mm
Rated voltage / frequency 100V AC 50 / 60 Hz
Power consumption 100 W
Rated time 30 minutes
External dimensions 395(W) × 490(H) × 285(D) mm
Weight 6 kg

■Power cable: 2 m

Note
Continuous operation which exceeds 15 min. can cause a motor
failure, etc.
Even on & off at 1 to 2 minute intervals is considered continuous.
Cutting capacity
Sheet material type Sheet thickness
mm
Suitable blades
Wood 50 K-100-1
Steel sheet
(without heat treatment)
10 K-100-2
(standard)
Aluminum sheet
(pure aluminum)
20
Brass & copper sheet 15
Plastic sheet 30 K-100-4
Glass sheet 10 K-100-3
WarningWarning
●Do not wear gloves when working with this product.
●Always wear safety glasses when working with these tools.

Manual

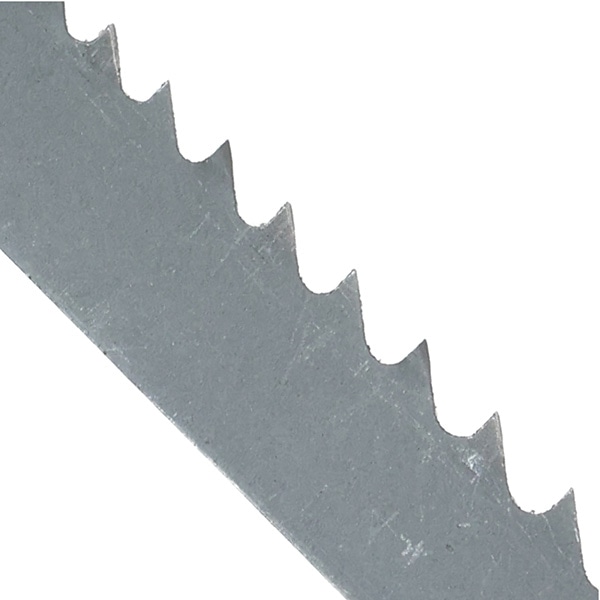

■Replacement parts

K-100-1 / 2 / 4
REPLACEMENT BLADES (for K-100)

Part no. Blade
width
mm

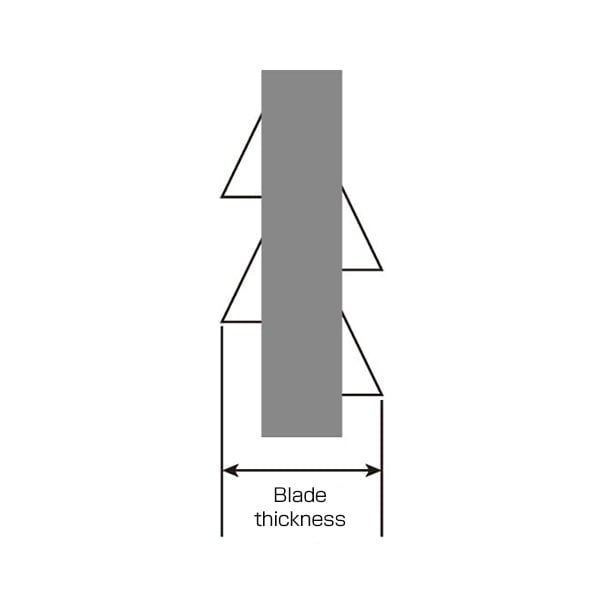

Blade
thickness
mm
Number of
blades
Round length
mm

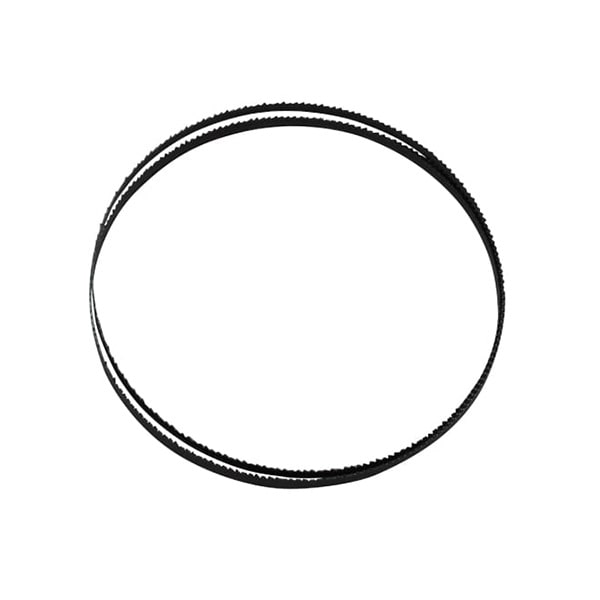

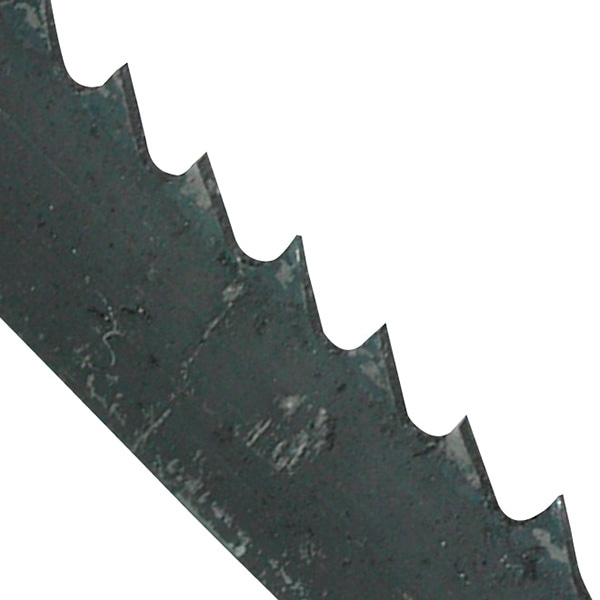

K-100-1 5 0.7 14 teeth / inch 1060

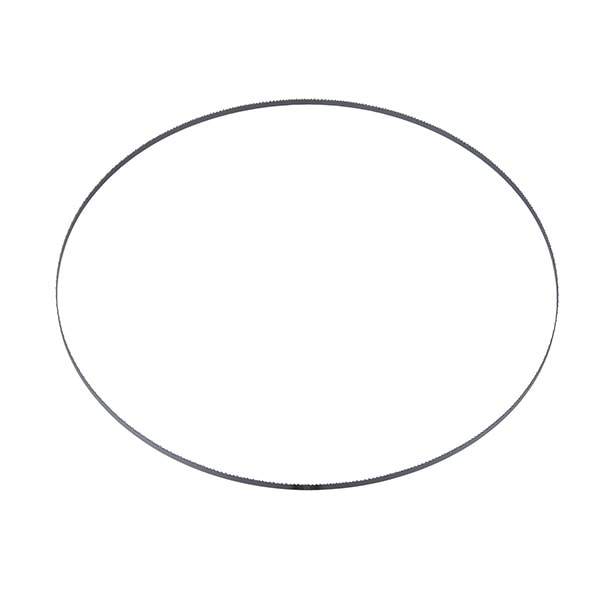

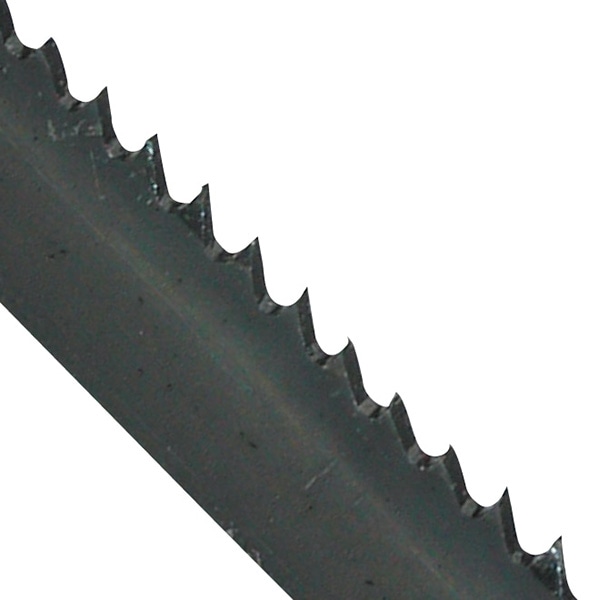

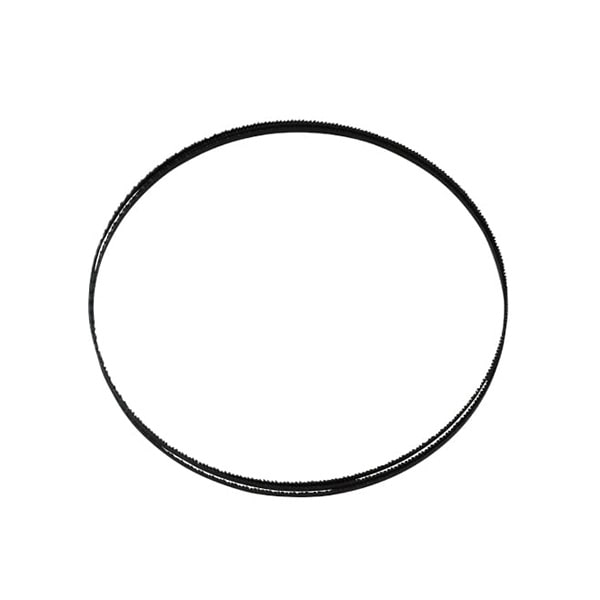

K-100-2 3.2 24 teeth / inch

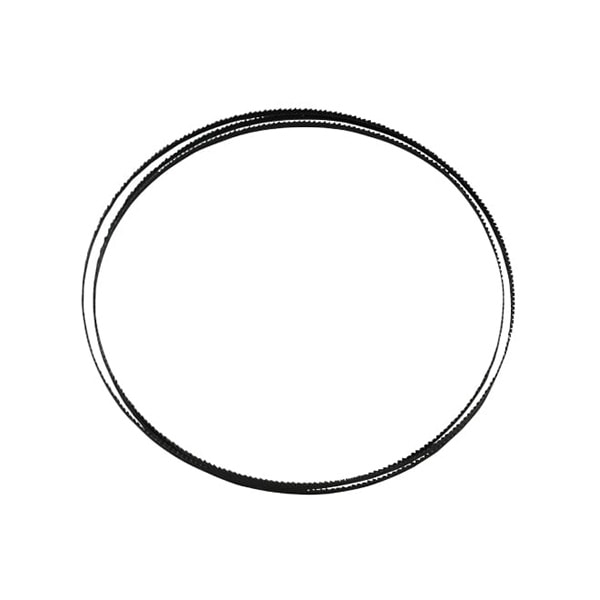

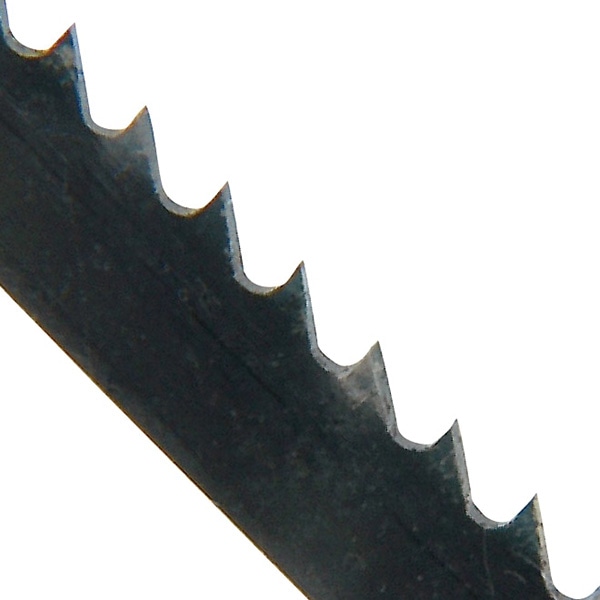

K-100-4 18 teeth / inch

K-100-10
REPLACEMENT BLADE SET

■Set contents:K-100-1 / K-100-2 / K-100-4

*Excluding K-100-3

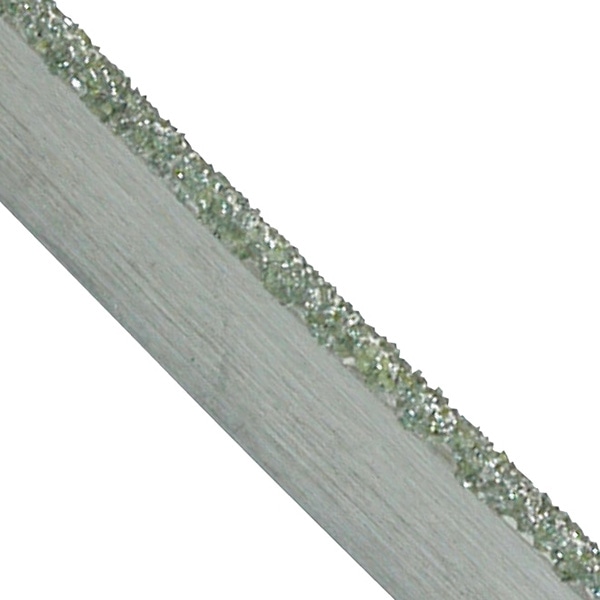

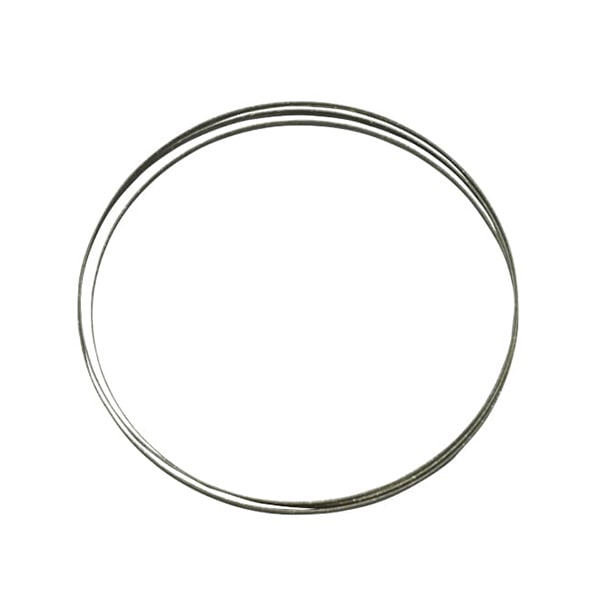

K-100-3
REPLACEMENT BLADE(diamond blade)

Blade width
mm
Blade thickness
mm
Diamond grid Round length
mm
3 0.7 #120 1060

■For cutting glass, porcelain, tile, ceramic, and stone.

* Always use K-100-3 together with K-105, cooling unit.

K-105
COOLING UNIT

■For diamond blade

Manual

K-100-18
BELT

■For K-100
