SG-106
SAND BLASTER

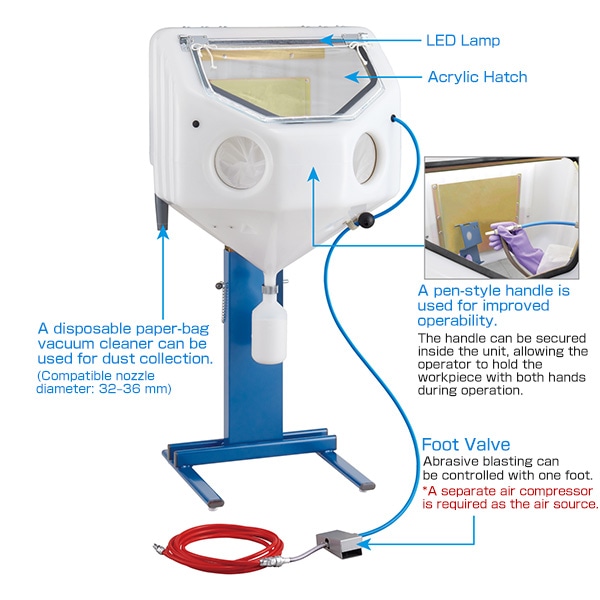

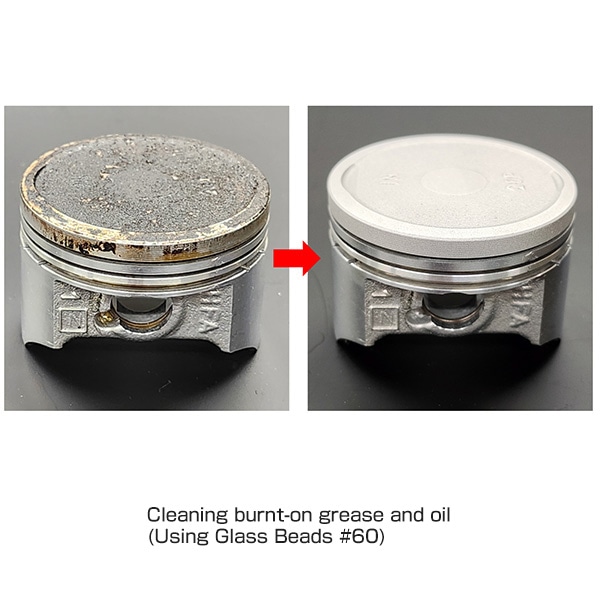

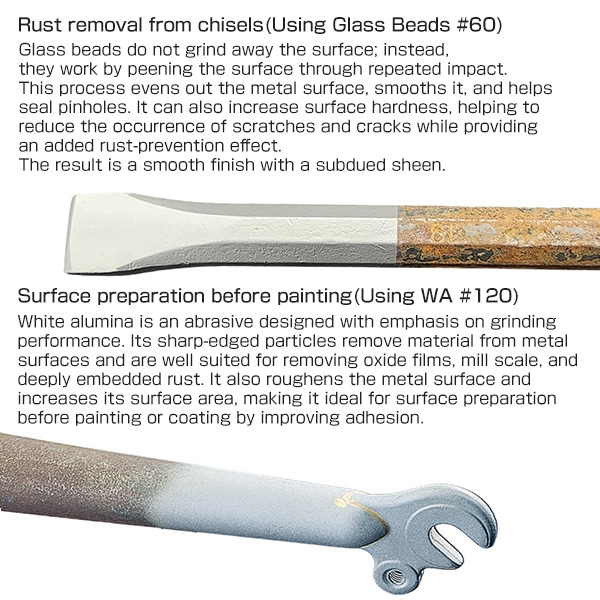

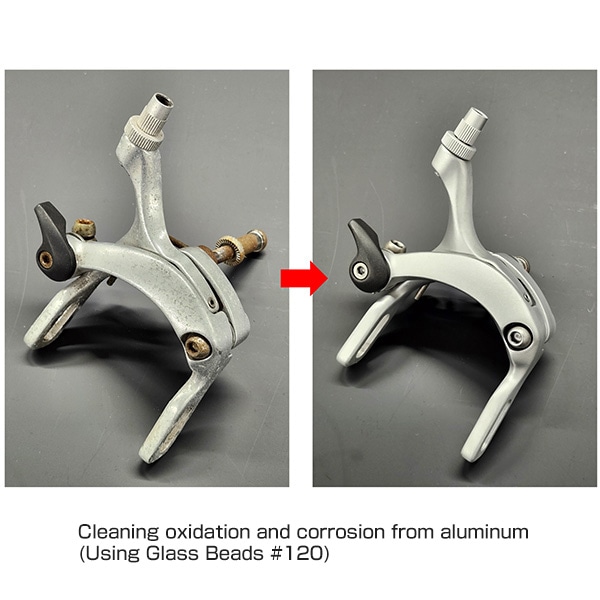

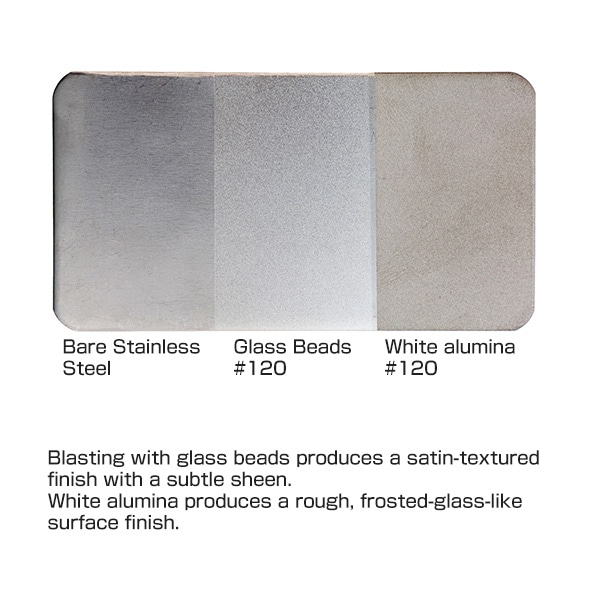

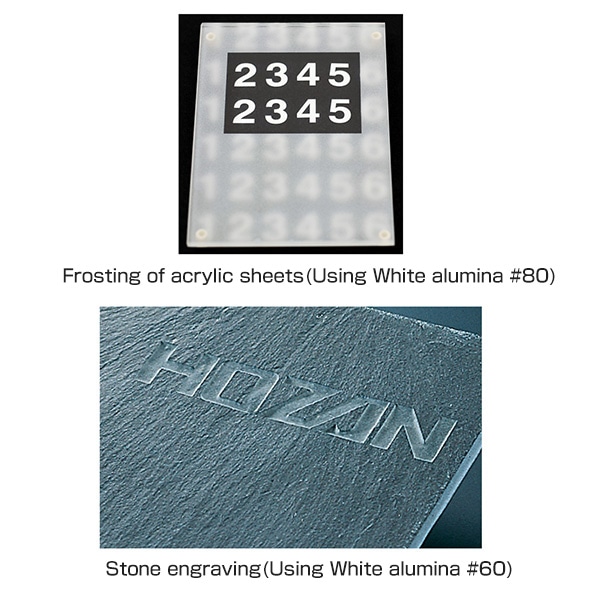

●Using compressed air, this unit sprays abrasives. It can be used for glass etching, for shot-blasting metal products, and for rust removal and deburring, etc.

●After connecting the abrasive tank, air compressor, and vacuum cleaner, then press a foot-valve to automatically execute the complete operation cycle which includes sucking up the abrasives, spraying it, and recovering it.

●Accessories: Foot-valve / blaster gun / air hose (5 m, with fixture) / abrasive (WA#80 × 1.5 kg) / 3 hatch protectors.

Blaster gun Nozzle dia. 3 mmφ / 4 mmφ
Nozzle material Ceramic
Air consumption amount 66 L / min(at 0.5 MPa)
Prescribed air pressure 0.5 to 0.8 Mpa
Prescribed air
compressor
For intermittent use 0.5 kW or higher
For continuous use 0.75 kW or higher
Rated voltage / frequency 100V AC, 50 / 60 Hz
Lighting 7.3 W, 729 lm, LED
Body material Polyethylene

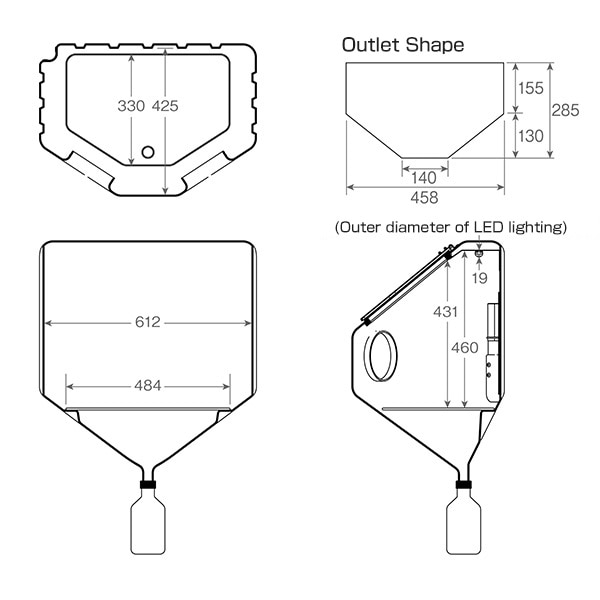

External dimensions 640(W)× 1360(H)× 603(D)mm
Weight 22.5 kg

Manual

Demonstration

■Demonstration

■Replacement part

SAND BLASTER

  • SG-116

■SG-106-1 Suction hose

■SG-106-2 Suction pipe

■SG-106-3 Exhaust filter

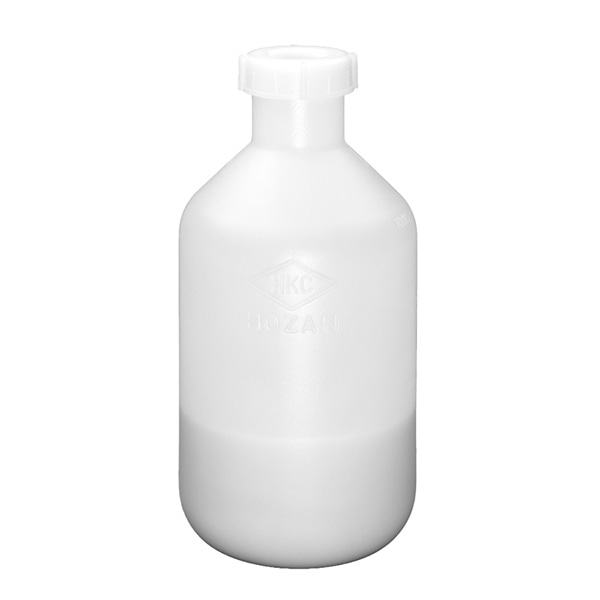

■SG-106-9 Bottle for Abrasive

■SG-106-15 Foot valve

■SG-115 Rubber glove

■SG-116 Abrasive (#80 / in 1.5 kg plastic tank)

EJECTOR PARTS

■SG-106-10

■SG-106-40 Air Nozzle

■SG-106-41 Ejector

■SG-106-50 Ceramic Nozzle

■SG-106-51 Ceramic Nozzle

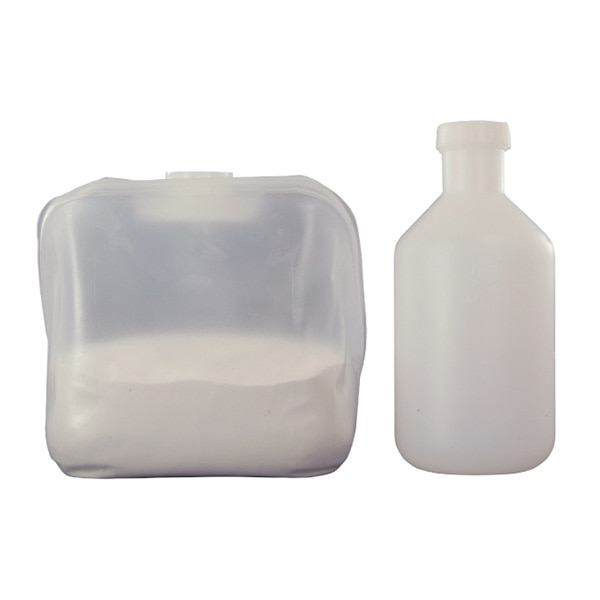

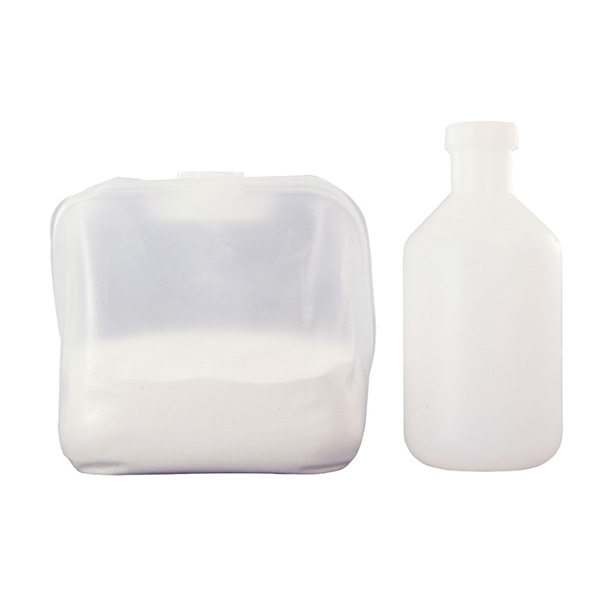

ABRASIVE

■Weight:5 kg

■With plastic tank for the abrasive.

Part no. Grid
SG-118-60 #60
SG-118-80 #80
SG-118-100 #100
SG-118-120 #120
SG-118-150 #150
SG-118-180 #180
SG-118-220 #220

■Optional items

SG-117
AIR FILTER

●Simply connect this product between the compressor and the main unit to remove moisture from the compressed air.
