HOZAN Logo

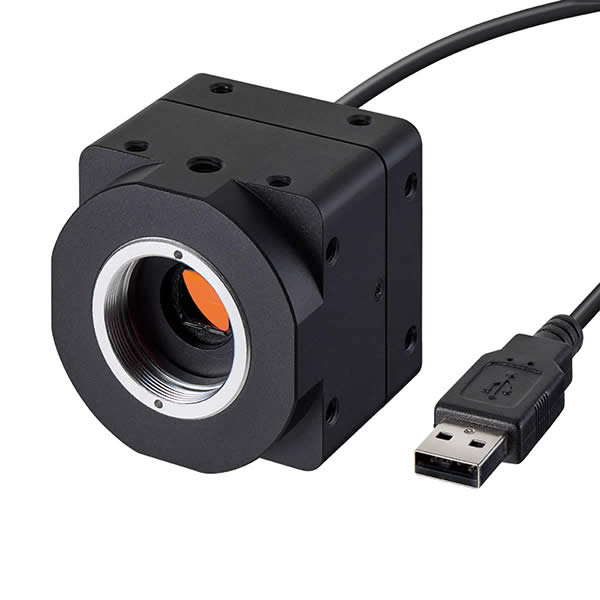

L-834
INFRARED USB CAMERA

  • PC
  • PC
  • USB
  • RoHS
  • CMOS500万画素
  • Windows10対応
  • Cマウント
Image sensor 1 / 2.5" CMOS
Display resolution
(Max.)
2592 × 1944 (5.0 Mega pixels)
Save resolution
(Max.)
2592 × 1944 (5.0 Mega pixels)
1280 × 960 (1.2 Mega pixels)
Maximum frame rate 30 fps ( 640 × 480 )
10 fps ( 2592 × 1944 )
Lens mount type C Mount
Rated voltage 5VDC(USB)
Power consumption 0.35 W
Hardware requirement OS: Windows 10 / 8 / 7
(32bit & 64bit version)
CPU: Intel Core 2 Duo 1.6GHz
or over recommended
Main memory: 1GB or over
Availability
of hard disk:
20GB or over
USB 2.0
Software HOZAN USB cam software
External dimensions 50(W) × 50(H) × 48(D)mm
Weight 200 g

■Cord length:1.8m

Manual

Software download


Microscope Combination 2 items

  • 新製品
  • PC
  • USB

» System diagram

L-834 Part. no Magnification X Field
of
view
mm
Working
distance
mm
Set contents
Lens Standard table LED lights
L-815 L-521 L-509 L-525 L-523 L-709

Standard type
L-KIT649 20×15 to 2.7×2.1 90
Wide type
L-KIT650 20×15 to 2.7×2.1 90

L-834 System diagram
