Custom orders are accepted
(even for 1 unit)

* Use the quotation form provided on our website.

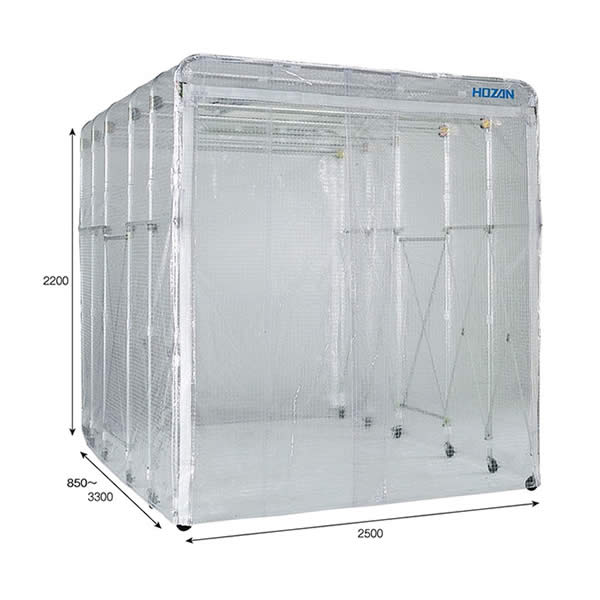

CL-901-B1
CLEAN BOOTH

  • not for export

■A fan filter unit and booth are included with the CL-901-B1.

Fan Filter Unit (FFU)
Rated voltage / frequency 100V AC 50 / 60 Hz
Power consumption 64 / 60 W(50 / 60 Hz)
Filter type HEPA(main filter), non-woven fabric(pre-filter)
Trapping efficiency 0.3 µm 99.97 % or higher
Airflow rate 9.0 / 10.5 m3 / min(50 / 60 Hz)
Airflow velocity 0.4 / 0.5 m / s(50 / 60 Hz)
(with HEPA / Pre-filter installed)
Weight 13.5 kg
(with HEPA / Pre-filter installed)
Booth

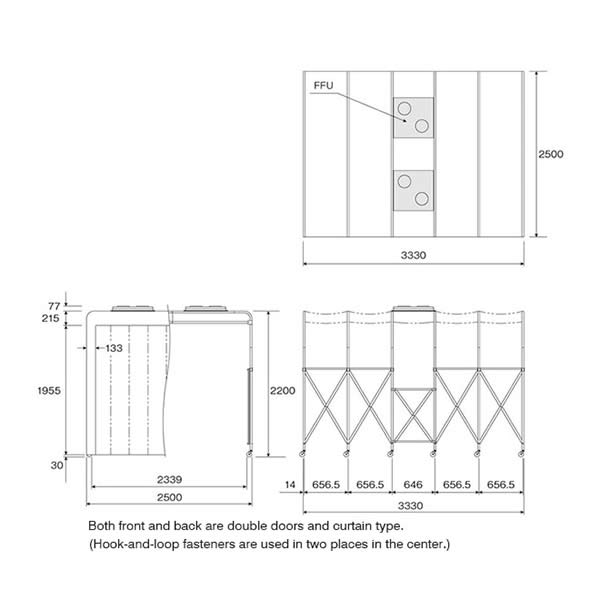

External dimensions 2500(W) × 2200(H) × 850 to 3300(D)mm
Booth capacity 18.2 m3
Quantity of FFU 2
Air exchange rate 60 times / hr (50 Hz)
69 times / hr (60 Hz)
Cleanliness class class 7 (ISO14644-1 / JIS B 9920-1), 10000(federal standard 209E)
Sheet material Fiber reinforced PVC sheet
(contains antistatic agent) thickness 0.3 mm
Frame material Aluminum
Weight 76.5 kg(Sheet 13.5 kg + frame 36 kg + FFU 27 kg)

Manual

Demonstration

■Optional items

Z-948
LED LIGHT

100V

» For details

Z-949
AIR CONDITIONER STAND

» For details
