■Attachment hose dia.:4 mmφ
Air source | Compressor | |
---|---|---|
Air consumption | 60 L / min(at 0.3 MPa) | |
Rated voltage | 24 VDC(with AC adapter) | |
Output voltage | AC4 kV ±15 % | |
Power consumption | 0.5 W | |
External dimensions |
Unit body | 63(W) × 40(H) × 90(D) mm |
Electrode | 34 mmφ × 80 mm(Arm length:290 mm) | |
Weight | 400 g | |

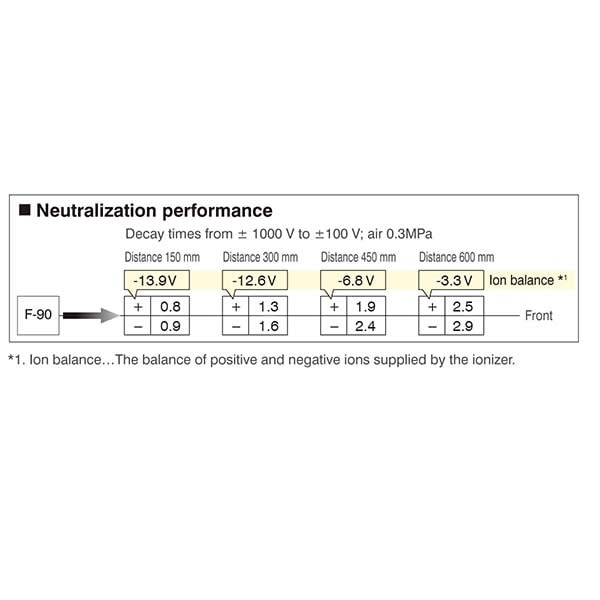

ESD standard | Max. of 20 secs. for charge decay from 1000 V to 100 V |
■Power cord: 1.6 m
●Blows air in a "flat" pattern.
●The nozzle tip angle can be freely adjusted.
