P-835
VACUUM PICK-UP TOOL 100-240v

Rated voltage 12V DC(with AC adapter)
Power consumption 3.2 W
Attainable vacuum -40 kPa or more
Dimensions Station 61(W)× 47(H)× 96(D)mm
Probe 14 mmφ(max.)× 138mmφ*
Weight Station 290 g
Probe 10 g*
Heat resistant temp.
(cup)
220 ℃

■Power cord : 1.6 m

■Air hose : 1 m

■3 cup types (S・M・L) , and nozzles (straight, bent, fine)

* With straight nozzle, cup L.

Nozzle Tip size
mmφ
Lift up
g
straight / bent 2.0 × 1.6 Depends on cup size
fine 1.0 × 0.25 Tiny parts of 1g or less
Size Cup dia.
mmφ
Lift up
g
S 3.5 8
M 6.5 70
L 9.5 150

■Replacement part

P-832-S / M
P-831-L
CUP

  • RoHS
Part no. Size Pad dia.
mmφ
Pick-up
capability
Quantity
supplied
P-832-S S 3.5 220 3 pieces
P-832-M M 6.5
P-831-L L 9.5

■For P-830 / 831 / 835

P-832

P-831-2
BENT NOZZLE

■Compatible models: P-835

■Quantity:1

P-831-2

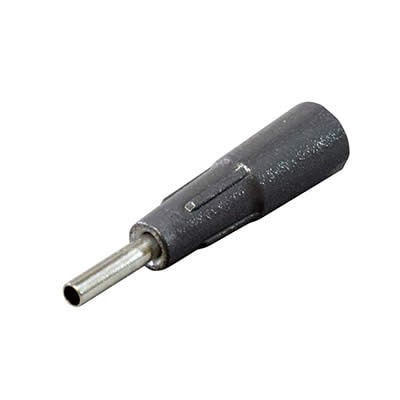

P-831-3
STRAIGHT NOZZLE

■Compatible models: P-835

■Quantity:1

P-831-3

P-831-4
BENT NOZZLE

■Compatible models: P-835

■Quantity:1

P-831-4

P-835-3
NARROW NOZZLE

■Compatible models: P-835

■Quantity:1

P-835-3

P-835-7
NARROW NOZZLE

■Compatible models: P-835

■Quantity:1

P-835-7
