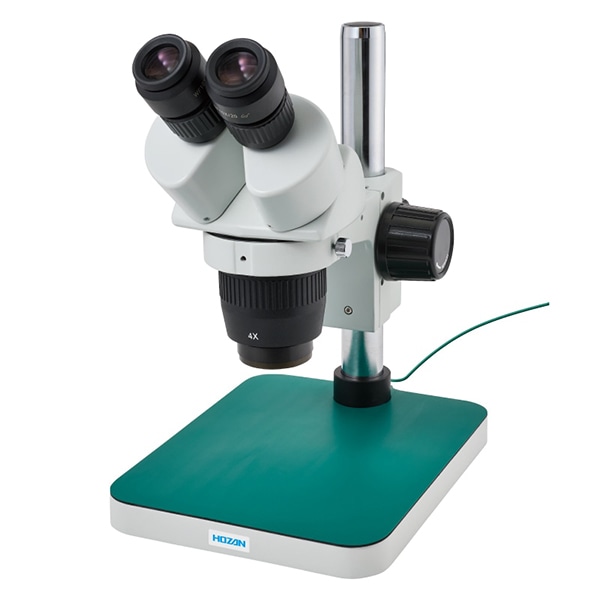

L-56
STEREO MICROSCOPE

  • NEW
  • RoHS
Total magnification (view) 20 X / 40 X
Objective lens 2 X / 4 X selection format
Eyepiece WF10X（L-546-10）
Field of view 10 / 5mm φ
Sight adjustment Independent left / right adjustment type, ± 5 Dptr
Working distance 84 mm
(equipped with lens filter / ring)
Focus adjustment Head scope up / down type
(adjustable range: 50 mm)
Stereo head spec. Binocular 45° Tilted Head scope
Eye width adjustment range 54 to 75 mm, left / right independent type
Table dimensions 200（W）× 255（D）mm
Support height 282 mm
Distance from lens center to support 133 mm
Weight 3.8 kg

■Accessories:2 Clips (Fastening Brackets), 2 Types of Eyecups, Dust Cover

Set contents

L-561
Stereo Head Scope
L-546-10
Eyepiece
L-462
Standard Table

Manual

Stereo Microscopes list

» Stereo Microscopes list

System diagram

L-561 L-852 L-472 L-471 L-503 L-503 L-837 L-514 L-461 L-501 L-69 L-546 L-498 L-845 L-57 L-58 L-836 L-851 L-846-1_2_3 L-462 L-424 L-509 L-511_513 L-846 L-523 L-521 L-525
L-56 Magnification table
　 Standard
Objective lens 1X 2X 1X 2X 1X 2X
Conversion lens - L-58-0.5 L-58-2.0
Eyepiece Magnifi-cation
X		 Field of view
mmφ		 Working distance
mm		 Magnifi-cation
X		 Field of view
mmφ		 Working distance
mm		 Magnifi-cation
X		 Field of view
mmφ		 Working distance
mm		 Magnifi-cation
X		 Field of view
mmφ		 Working distance
mm		 Magnifi-cation
X		 Field of view
mmφ		 Working distance
mm		 Magnifi-cation
X		 Field of view
mmφ		 Working distance
mm
L-546-10
（WF10X）		 20 10 84 40 5 84 10 20 150 20 10 150 40 5 33 80 2.5 33
L-546-20
（WF20X）		 40 5 84 80 2.5 84 20 10 40 5 80 2.5 160 1.25

* The "working distance" is the distance from the end of the filter to the subject.
